Tractor · 2006Unverified

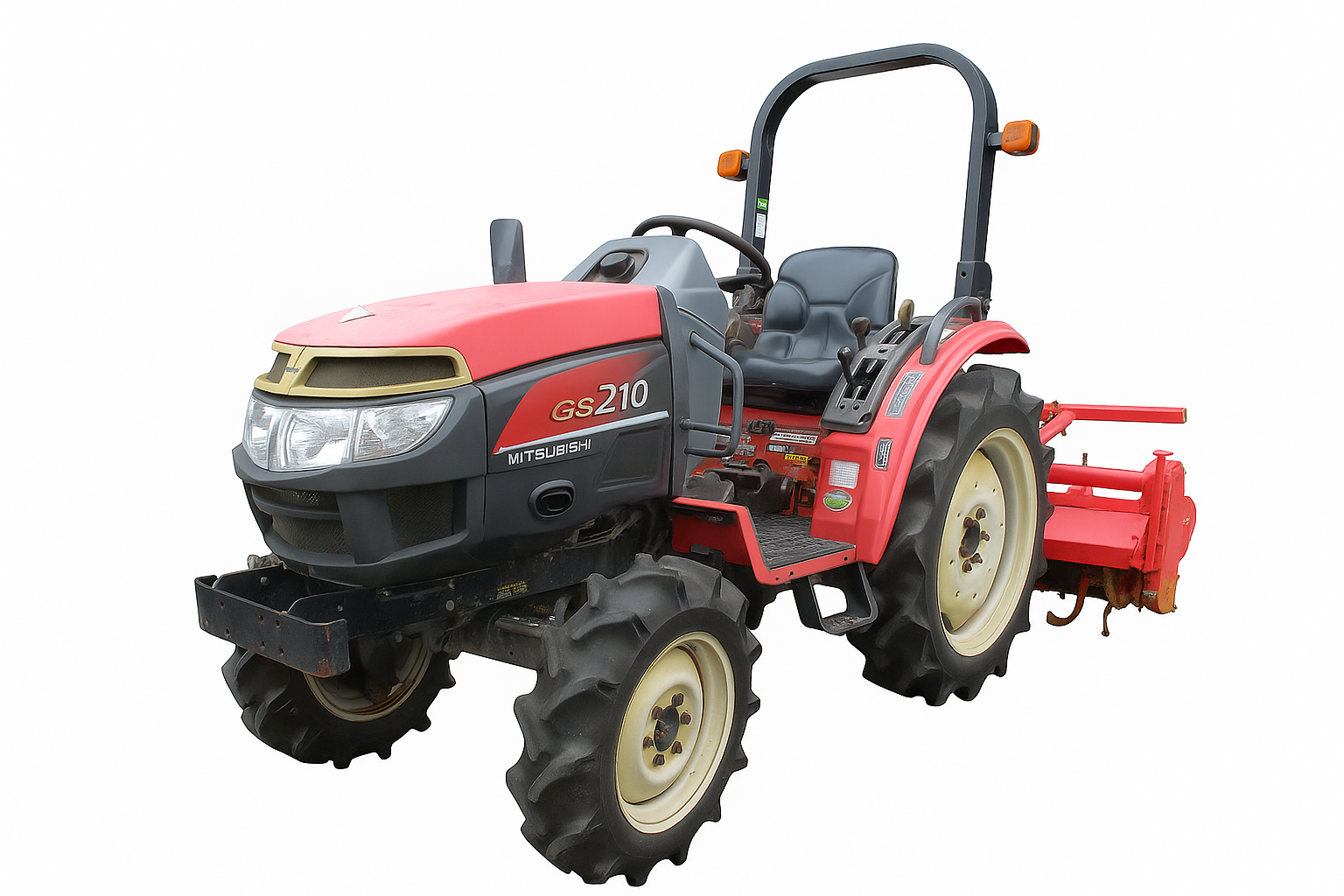

Mitsubishi GS210
Mitsubishi GS210 — GS Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1951 to 2469 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank25.7 LReference
Engine15.4 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power15.4 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM566@2500Reference
Engine RPM815@2500Reference
Engine RPM1310@2500Reference
Engine RPM-952@2500Reference
Dimensions
Wheelbase145 cmReference
Weight1951 to 2469 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length271 cmReference
Width115 cmReference
Height (ROPS)192 cmReference
Height (cab)278 cmReference
ROPS Weight884 kgReference
Cab Weight1119 kgReference
Ground clearance36 cmReference
Front tread92 cmReference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
