Tractor · 2003Unverified

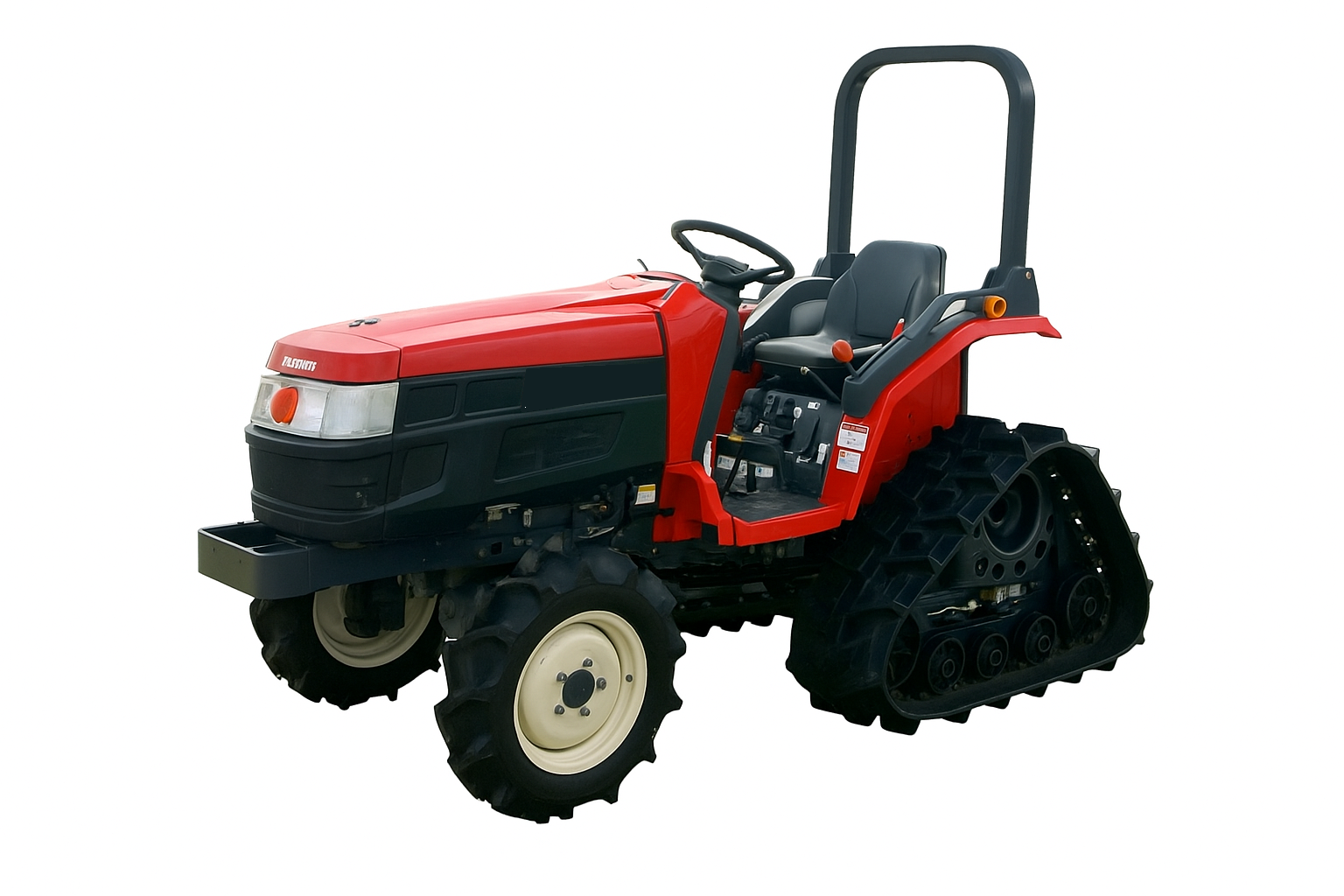

Mitsubishi GSK20
Mitsubishi GSK20 — GS Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1305 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Isuzu 1.4L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine14.7 kWReference
Isuzu E3CCReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM819@2500Reference
Engine RPM1266@2500Reference
Engine RPM-505@2500Reference
Engine RPM-792@2500Reference
Engine RPM-1224@2500Reference
Dimensions
Wheelbase150 cmReference
Weight1305 kgReference
Front tire7-14Reference
Rear tiretracksReference
Ag front7-14Reference
Ag rear400mm tracksReference
Length284 cmReference
Width137 cmReference
Height (ROPS)197 cmReference
Ground clearance41 cmReference
Front tread96 cmReference
Rear tread98 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
