Tractor · 2013Unverified

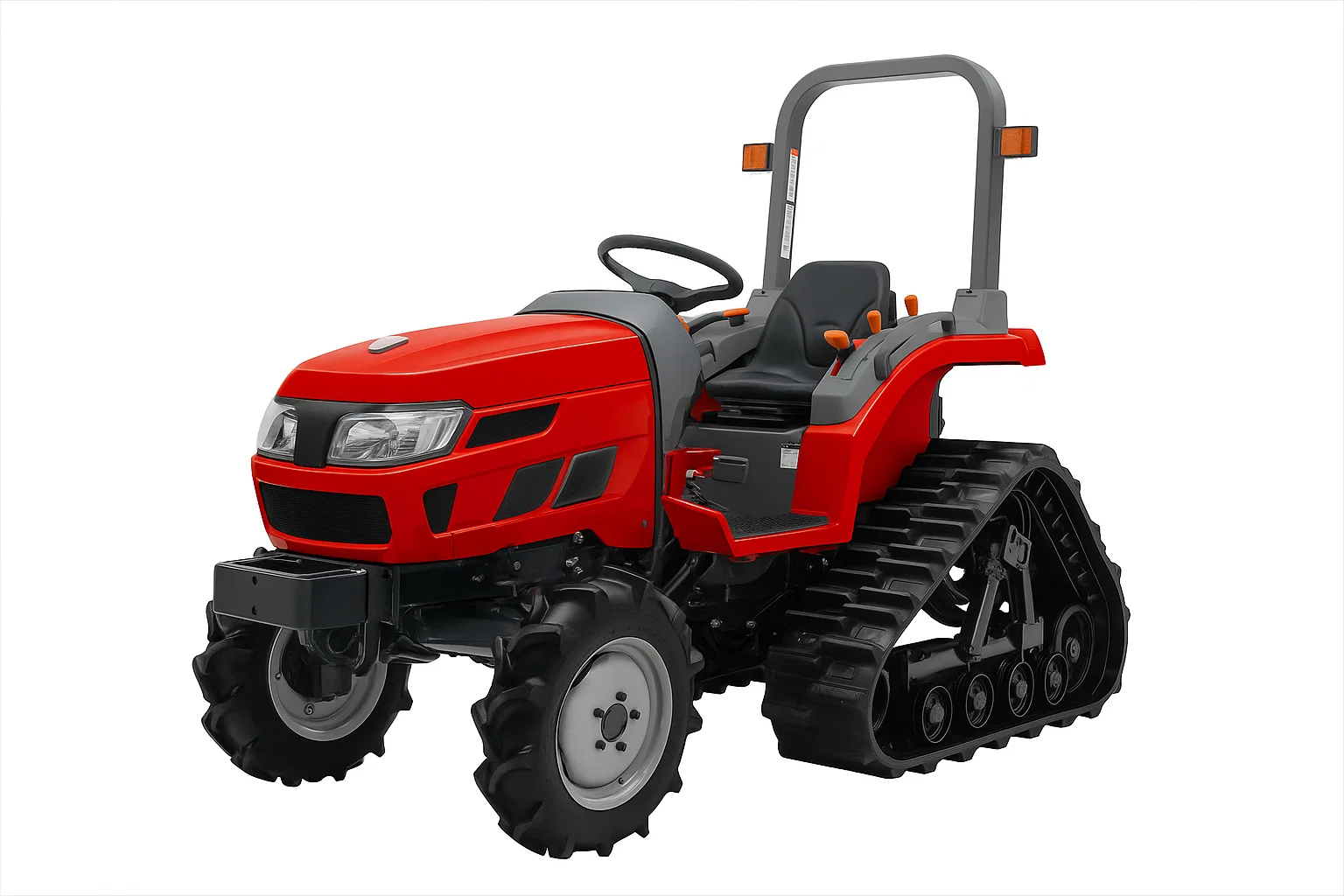

Mitsubishi GSK205
Mitsubishi GSK205 — GS Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1045 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Two-post ROPS.Reference
Variants
GS201wheeledReference
GSK205half-trackReference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine14.7 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
Four gears in three ranges with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM783@2500Reference
Engine RPM1184@2500Reference
Engine RPM-505@2500Reference
Engine RPM-757@2500Reference
Engine RPM-1145@2500Reference
Dimensions
Wheelbase135 cmReference
Weight1045 kgReference
Front tire6.00-12Reference
Rear tiretracksReference
Ag front6.00-12Reference
Ag rear330mm tracksReference
Length270 cmReference
Width123 cmReference
Height (ROPS)199 cmReference
Ground clearance39 cmReference
Front tread88 cmReference
Rear tread88 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 15% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
