Tractor · 2006Unverified

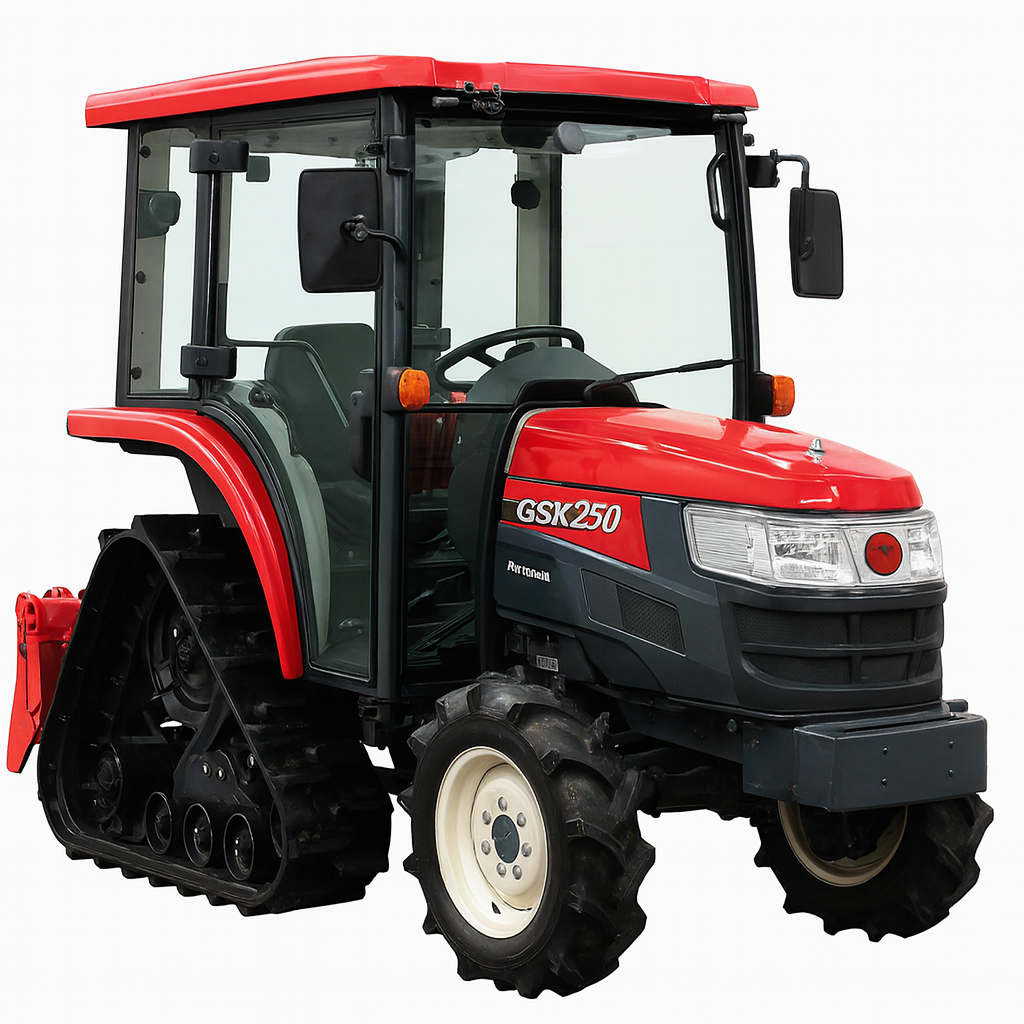

Mitsubishi GSK250
Mitsubishi GSK250 — GS Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2811 to 3241 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Isuzu 1.5L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine18.4 kWReference
Isuzu E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 86 mmReference
Power18.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Dimensions
ROPS Wheelbase150 cmReference
Cab Wheelbase154 cmReference
Weight2811 to 3241 poundsReference
Front tire7-14Reference
Rear tiretracksReference
Ag front7-14Reference
Ag rear400mm tracksReference
Width143 cmReference
Height (ROPS)199 cmReference
Height (cab)199 cmReference
ROPS Weight1275 kgReference
Cab Weight1470 kgReference
Ground clearance41 cmReference
Front tread96 cmReference
Rear tread103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
