Tractor · 2009Unverified

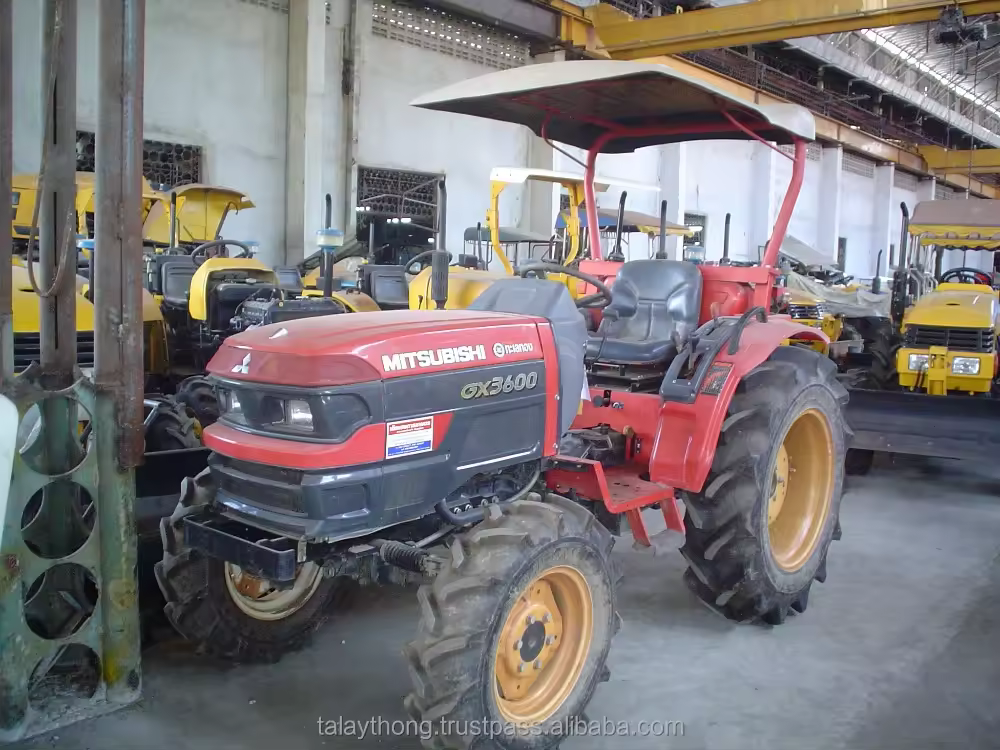

Mitsubishi GX3600
Mitsubishi GX3600 — GX Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1149 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Mitsubishi 1.7L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine26.8 kWReference
Mitsubishi S3L3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Power26.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
Pump flow29.1 lpmReference
Steering flow13.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1200 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase165 cmReference
Weight1149 kgReference
Front tire7.50-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7.50-16. Rear: 12.4-24Reference
Length278 cmReference
Width140 cmReference
Height (steering wheel)148 cmReference
Ground clearance38 cmReference
Front tread111 cmReference
Rear tread108 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH36Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
