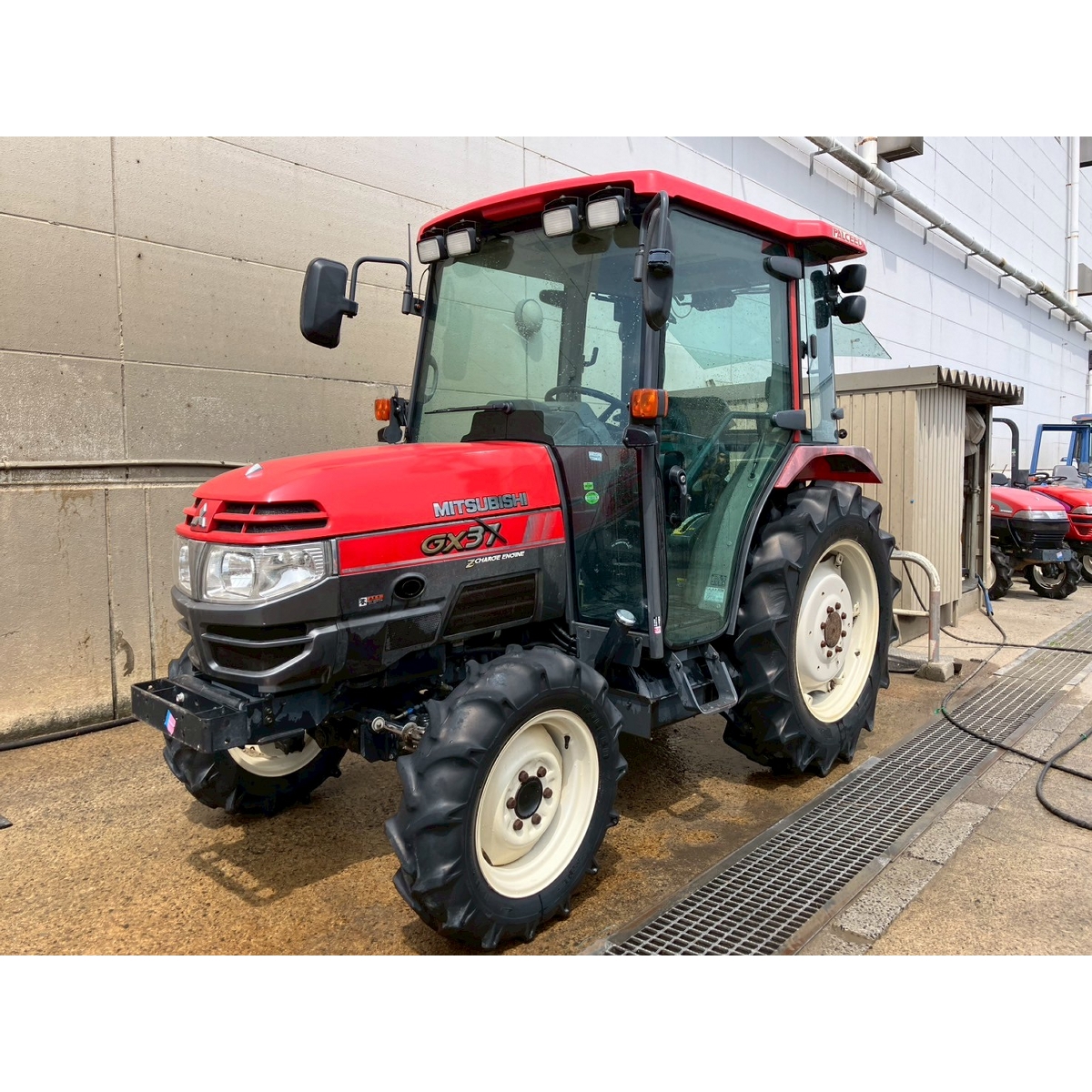

The Mitsubishi GX37 is a compact tractor model with a rating of 37 hp, falling within a smaller size category. Manufactured from 2005 to 2010, it features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system through a 16-speed gearbox. The listed weight of the Mitsubishi GX37 is 1680 kg, and it is designed for tasks requiring up to 200 acres of land.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
1680 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
37 hp
Recorded weight
1680 kg
Transmissions
16-speed
Production years
2005-2010
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-condioning.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine27.6 kWReference
Mitsubishi S4L2-TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power27.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1898 kgReference
Rear PTO Type570/787/1277 (1.375)Reference
Dimensions
Wheelbase183 cmReference
Weight1680 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 8-18. Rear: 12.4-28Reference
Length340 cmReference
Width151 cmReference
Height237 cmReference
Ground clearance36 cmReference
Front tread121 cmReference
Rear tread115/125/134/144/154/164 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
