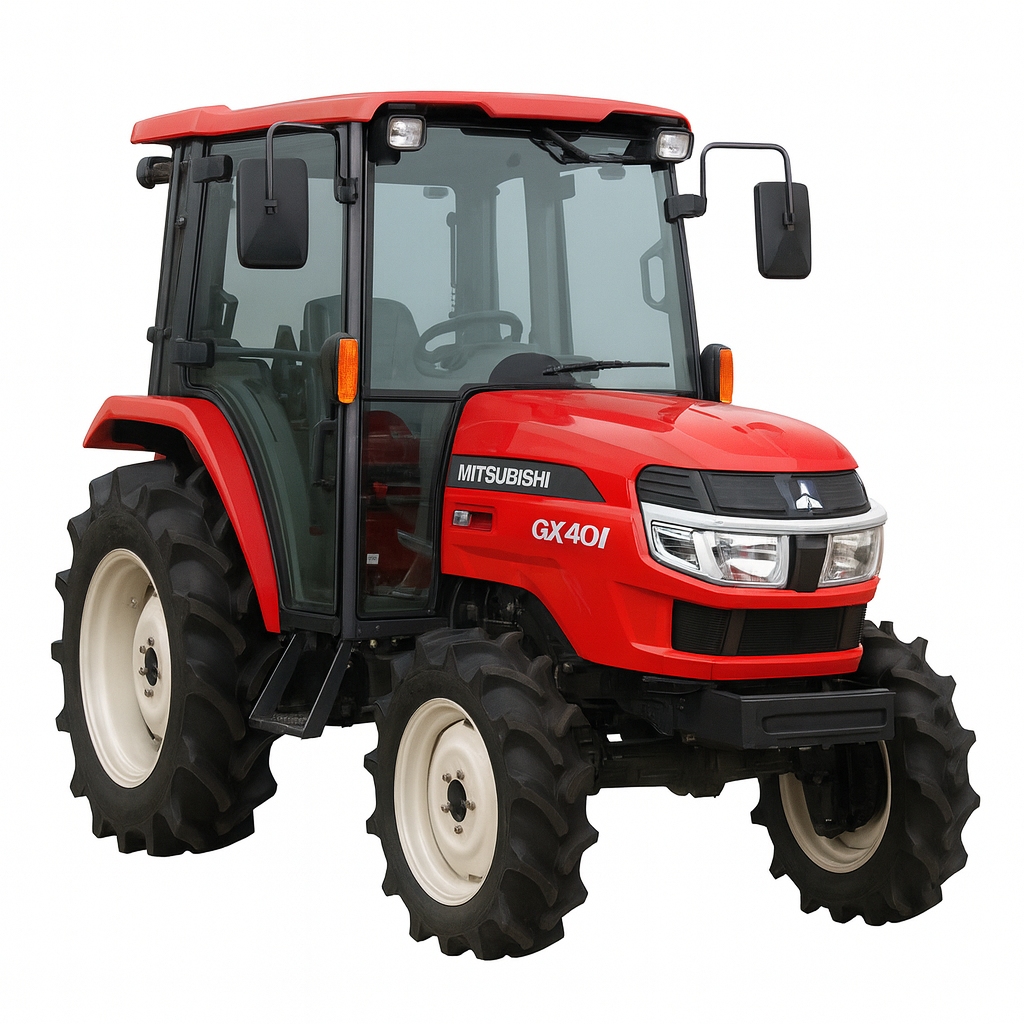

The Mitsubishi GX401 is a tractor model with a rated power output of 40 hp, classifying it as a lighter model within its category. Production of this model spanned the period from 2011 to 2015. The GX401 is equipped with a 4-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 16-speed gearbox. Its listed operating weight is 1690 kg, and it is suitable for operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1690 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
40 hp
Recorded weight
1690 kg
Transmissions
16-speed
Production years
2011-2015
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-condioning.Reference
Variants
GX401wheeled tractorReference
GXK401half-trackReference
Engine
Mitsubishi 2.2L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine29.8 kWReference
Mitsubishi S4L3-12AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Power29.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Transmissione-ShiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift1901 kgReference
Rear PTO Type573/819/1328 (1.375)Reference
Dimensions
Wheelbase189 cmReference
Weight1690 kgReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length340 cmReference
Width155 cmReference
Height237 cmReference
Ground clearance36 cmReference
Front tread121 cmReference
Rear tread121 to 157 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
