Tractor · 2009Unverified

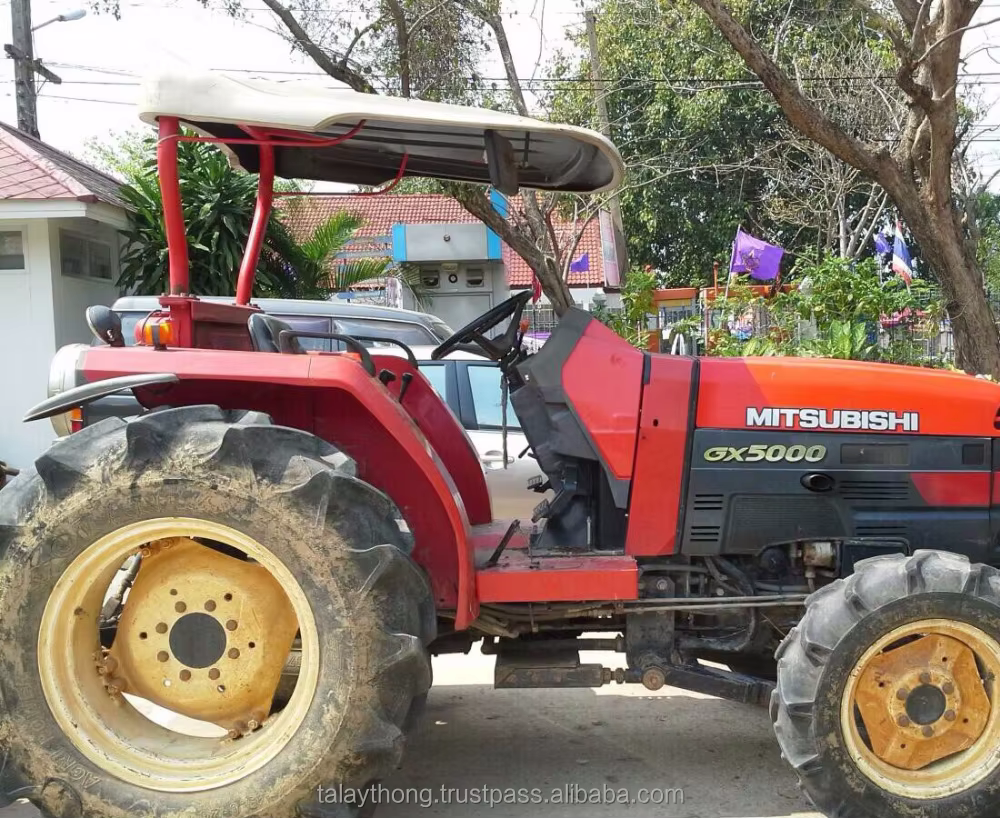

Mitsubishi GX5000
Mitsubishi GX5000 — GX Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
1700 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Mitsubishi 2.5L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine37.3 kWReference
Mitsubishi S4Q2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
Power37.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure166.7 barReference
Pump flow24.2 lpmReference
Steering flow23.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)1900 kgReference
Rear PTO Type540/881/1098 (1.375)Reference
Dimensions
Wheelbase197 cmReference
Weight1700 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 8-18. Rear: 12.4-28Reference
Length350 cmReference
Width150 cmReference
Height (steering wheel)160 cmReference
Ground clearance36 cmReference
Front tread121 cmReference
Rear tread115/125/134/144/154/164 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH64Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
