Tractor · 2011Unverified

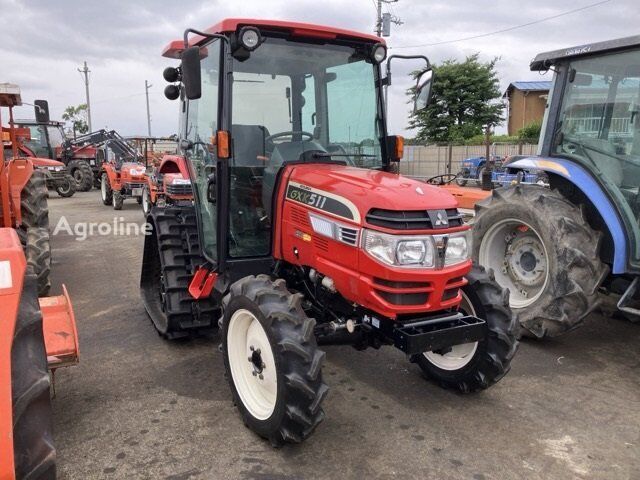

Mitsubishi GXK511
Mitsubishi GXK511 — GX Series · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
2095 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-condioning.Reference
Variants
GX511wheeled tractorReference
GXK511half-trackReference
Engine
Mitsubishi 2.5L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine38.0 kWReference
Mitsubishi S4Q2-T11AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
Power38.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift1901 kgReference
Rear PTO Type573/819/1328 (1.375)Reference
Dimensions
Wheelbase198 cmReference
Weight2095 kgReference
Front tire8.3-20Reference
Rear tiretracksReference
Ag front8.3-20Reference
Ag reartracksReference
Length352 cmReference
Width167 cmReference
Height243 cmReference
Ground clearance37 cmReference
Front tread124 cmReference
Rear tread128 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
