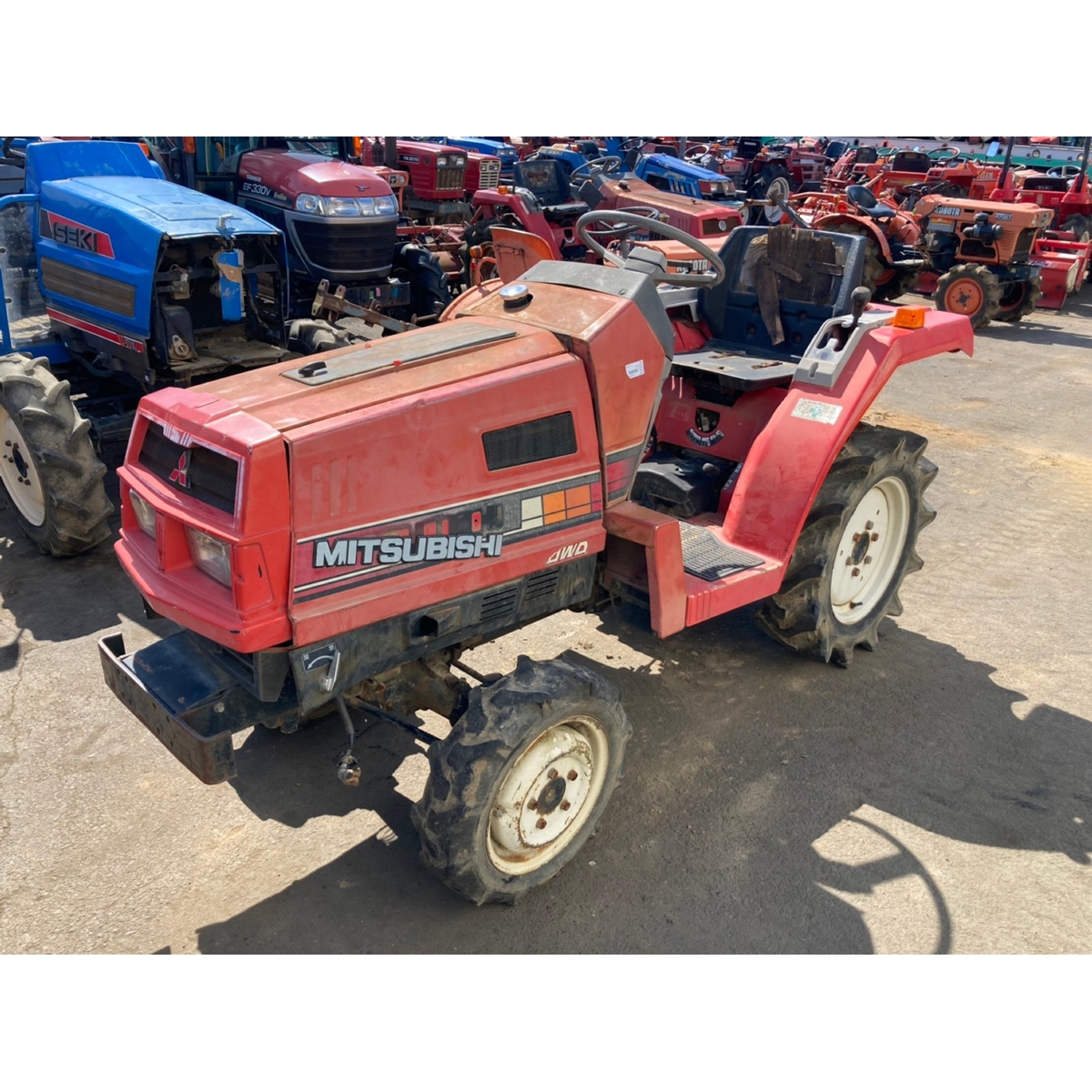

The Mitsubishi MT14 is a compact tractor, rated at 14 hp, making it a suitable option for smaller-scale operations. It was produced from 1986 to 1993 and features a 3-cylinder diesel liquid-cooled engine, linked to a 6-speed gearbox and four-wheel drive system. The tractor weighs approximately 680 kg and is capable of handling tasks on around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
680 kg
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
14 hp
Recorded weight
680 kg
Transmissions
6-speed gear
Production years
1986-1993
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
MT142WDReference
MT14D4WDReference
Engine
Mitsubisi 1.0L 3-cyl dieselReference
Engine10.3 kWReference
Mitsubisi L3CReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power10.3 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears (1-3), plus reverse (R), in high and low ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Dimensions
Weight680 kgReference
Shipping weight680 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
