Tractor · 1981Unverified
Mitsubishi MT1401
Mitsubishi MT1401 — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1202 to 1312 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
MT14012WDReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine10.7 kWReference
Mitsubishi K3BReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.8 LReference
Power10.7 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference

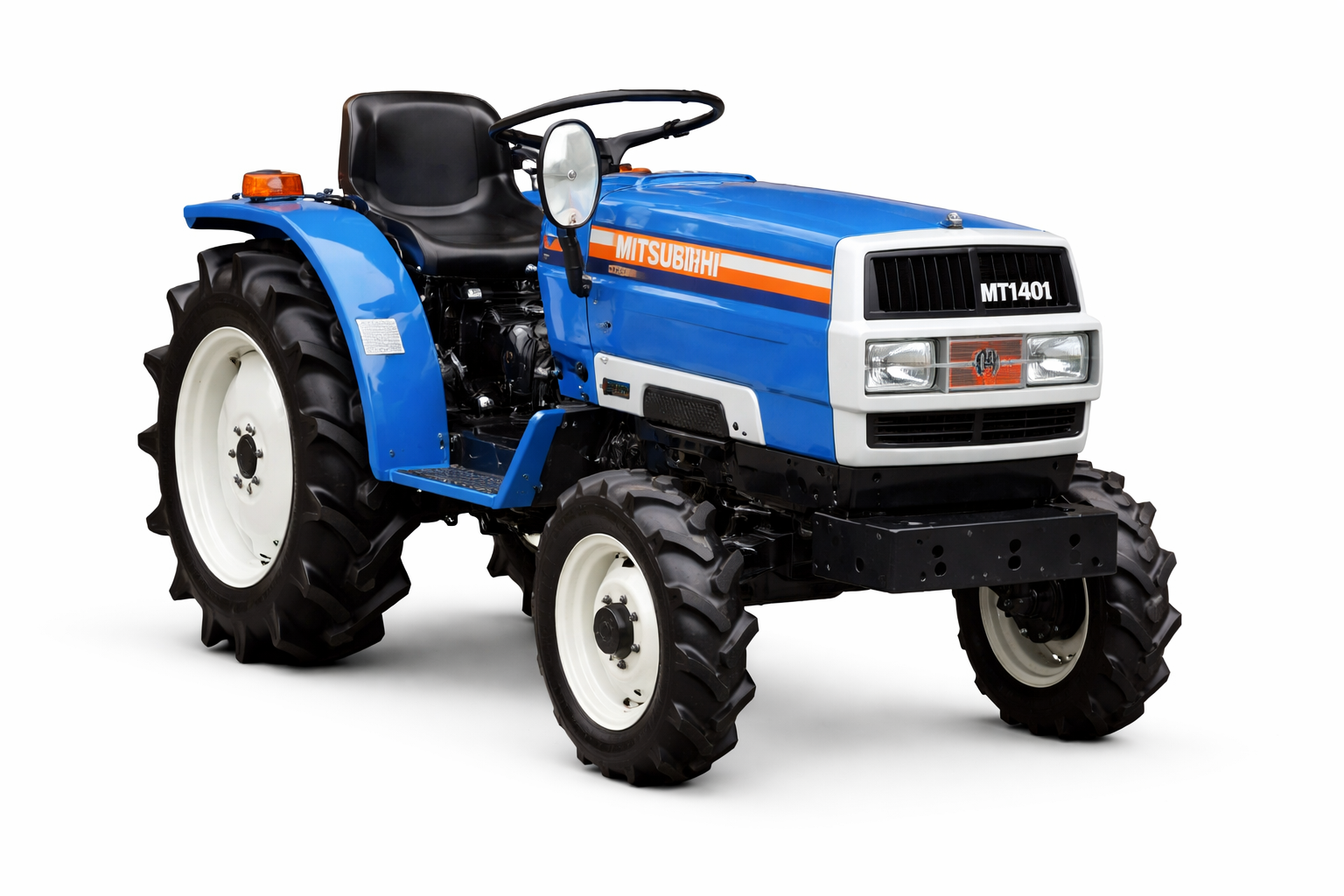

Image courtesy of Dan TaylorReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2400Reference
Engine RPM780@2400Reference
Engine RPM1096@2400Reference
Dimensions
2WD Wheelbase128 cmReference
4WD Wheelbase130 cmReference
Weight1202 to 1312 poundsReference
Front tire4.50-10Reference
2WD Rear tire8.3-18Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8.3-18Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8.3-18Reference
Length223 cmReference
Width98 cmReference
Height118 cmReference
2WD Weight545 kgReference
4WD Weight595 kgReference
2WD Front tread72 cmReference
4WD Front tread78 cmReference
4WD Rear tread73 to 88 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
