Tractor · 1981Unverified

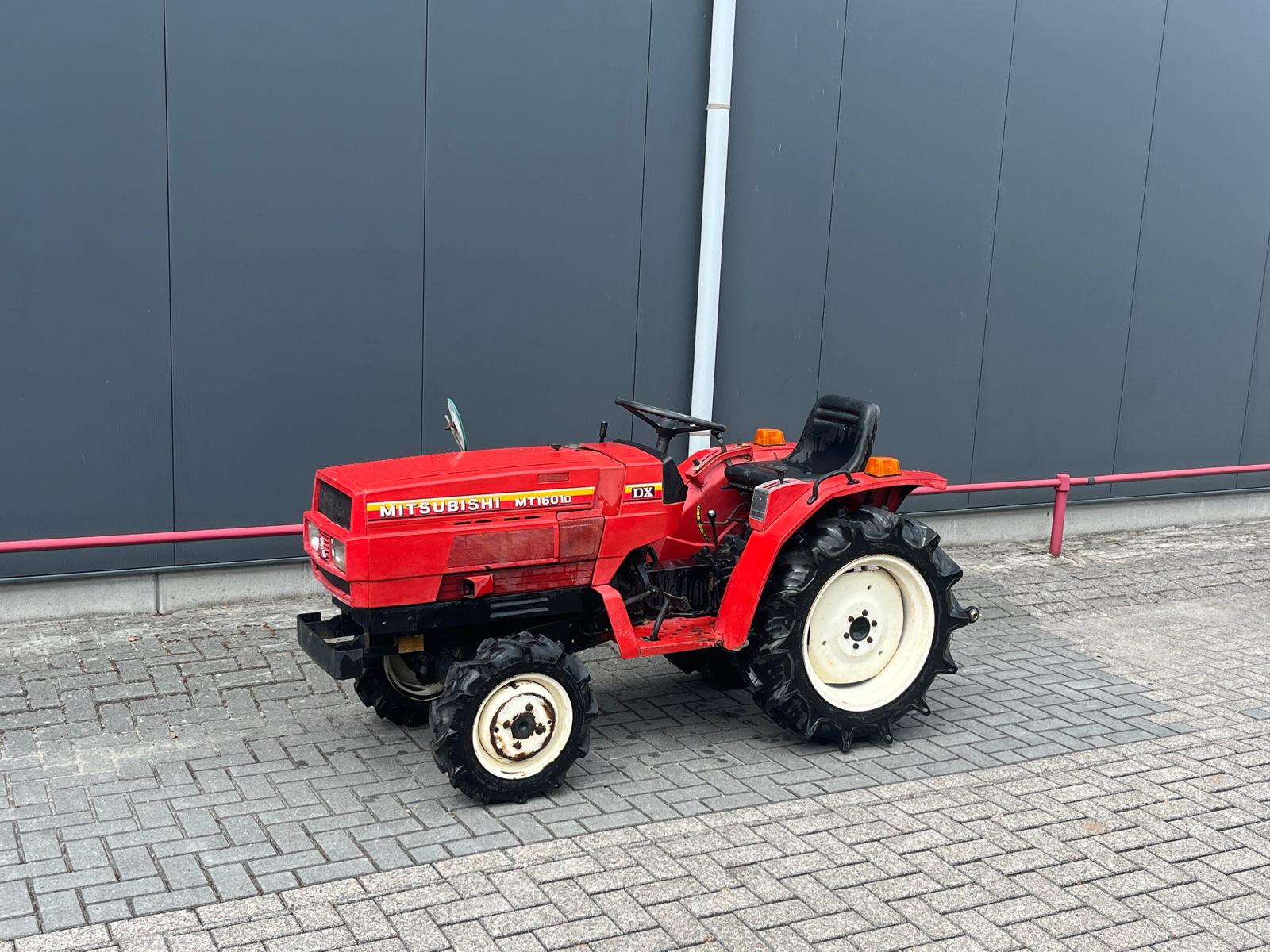

Mitsubishi MT1601

Name: Mitsubishi MT1601
Brand: Mitsubishi

Mitsubishi MT1601 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.

The Mitsubishi MT1601 is a tractor with a power rating of approximately 16 hp, which positions it at the lower end of its class. It was manufactured between 1981 and 1983. The model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive. Its operating weight is stated as 1235 to 1345 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

1235 to 1345 pounds

Catalogue coverage

Variants represented

Richest spec table

35 rows

Recorded power

16 hp

Recorded weight

560 kg

Transmissions

gear

Production years

1981-1983

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMitsubishiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

MT16012WDReference

Engine

Mitsubishi 0.9L 3-cyl dieselReference

Fuel tank18.2 LReference

Engine11.8 kWReference

Mitsubishi K3CReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Power11.8 kWReference

Rated RPM2400Reference

Starter volts12Reference

PTO & Hydraulics

Rear PTO Type554/817/1339 (1.375)Reference

Dimensions

2WD Wheelbase128 cmReference

4WD Wheelbase130 cmReference

Weight1235 to 1345 poundsReference

Front tire4.50-10Reference

2WD Rear tire8.3-20Reference

2WD Standard tires (ag)Front: 4.50-10. Rear: 8.3-20Reference

4WD Standard tires (ag)Front: 5.00-12. Rear: 8.3-20Reference

Length225 cmReference

Width98 cmReference

Height119 cmReference

2WD Weight560 kgReference

4WD Weight610 kgReference

2WD Front tread72 cmReference

4WD Front tread78 cmReference

4WD Rear tread73 to 88 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Transmission

TransmissiongearReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
