Tractor · 1984Unverified

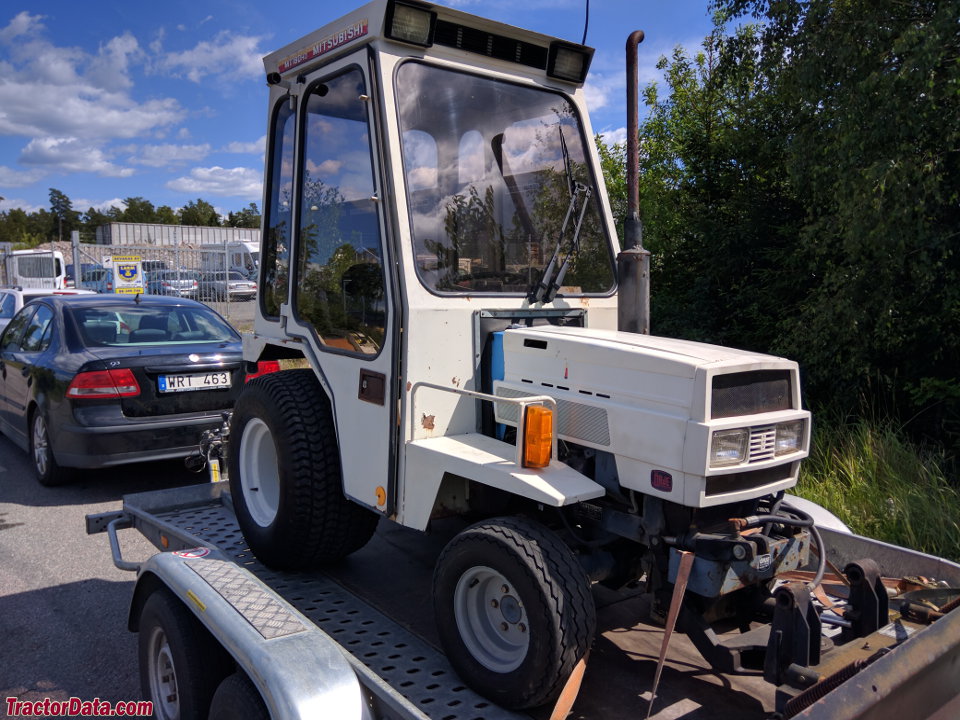

Mitsubishi MT180
Mitsubishi MT180 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1268 to 1378 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Transmission
MT180 Gear2WDReference
MT180D Gear4WDReference
hydrostaticReference
6-speed sliding gearReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Typesliding gearReference
Gears6 forward and 2 reverseReference
Oil capacity12.0 LReference
Variants
MT180HM2WD HydroReference
MT180HMD4WD HydroReference
Engine
Mitsubishi 0.9L 3-cyl dieselReference
Engine13.8 kWReference
Mitsubishi K3CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke70 x 78 mmReference
Power13.8 kWReference
Air cleanerdryReference
Compression23:1Reference
Rated RPM2700Reference
Torque51.9 NmReference
Torque RPM1600Reference
Firing order1-3-2Reference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity5.0 LReference
PTO & Hydraulics
PTO (claimed)11.6 kWReference
Hydraulic system12.1 LReference
Typeopen centerReference
Capacity12.1 LReference
Pressure132.4 barReference
Pump flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2340Reference
Engine RPM1000@1793Reference
Capacities
Fuel18.2 LReference
Dimensions
Wheelbase142 cmReference
Weight1268 to 1378 poundsReference
Front tire4.50-10Reference
2WD Rear tire8-18Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8-18Reference
4WD Standard tires (ag)Front: 5-12. Rear: 8-18Reference
Length222 cmReference
2WD Width93 cmReference
4WD Width97 cmReference
2WD Height (steering wheel)117 cmReference
4WD Height (steering wheel)118 cmReference
2WD Weight575 kgReference
4WD Weight625 kgReference
2WD Ground clearance27 cmReference
4WD Ground clearance21 cmReference
2WD Front tread71 cmReference
4WD Front tread78 cmReference
Rear tread73 to 0 cmReference
Electrical
GroundnegativeReference
Charging amps35Reference
Battery volts12Reference
Battery AH45Reference
Speeds
With 8-18 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
