Tractor · 2008Unverified

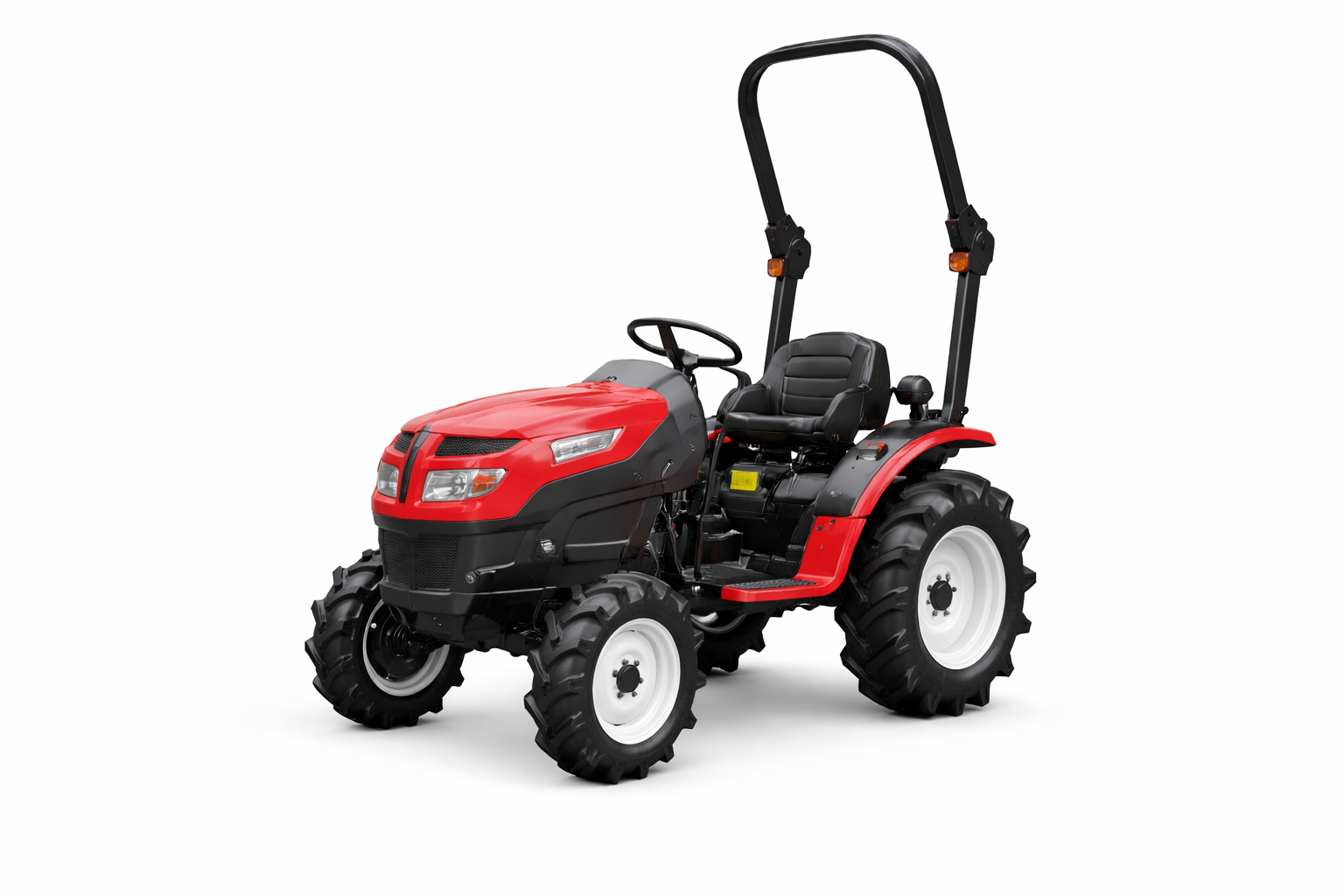

Mitsubishi MT1800
Mitsubishi MT1800 — MT Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1499 to 1609 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine13.4 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power13.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
hydrostaticReference
Gear Weight679 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Gear PTO (claimed)11.9 kWReference
Hydro PTO (claimed)10.1 kWReference
Pressure102.9 barReference
Pump flow17.0 lpmReference
Steering flow8.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)635 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTOoptionalReference
Mid PTO Type2000 (1.0)Reference
Engine RPM2000@2556Reference
Dimensions
Wheelbase145 cmReference
Weight1499 to 1609 poundsReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear315/75D15Reference
Length257 cmReference
Width105 cmReference
Height (ROPS)230 cmReference
Hydro Weight729 kgReference
Ground clearance28 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
