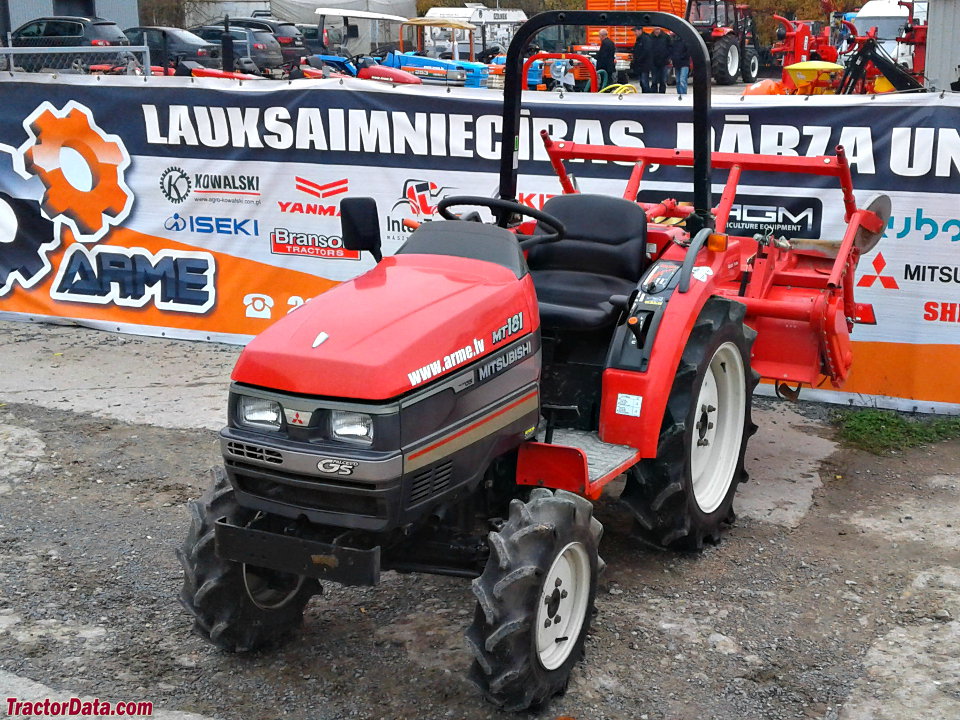

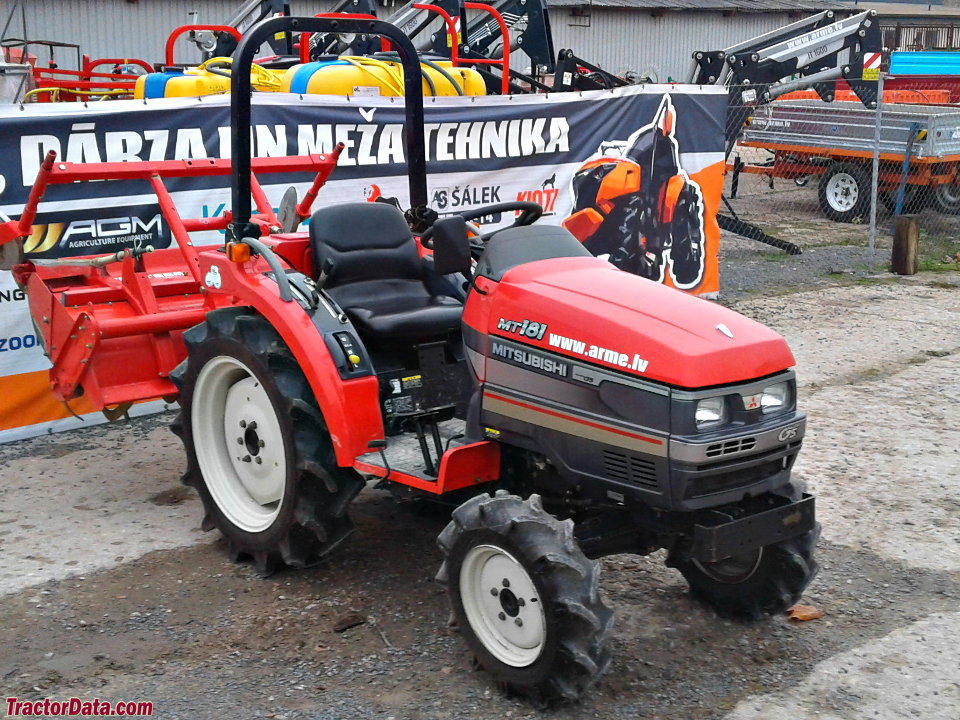

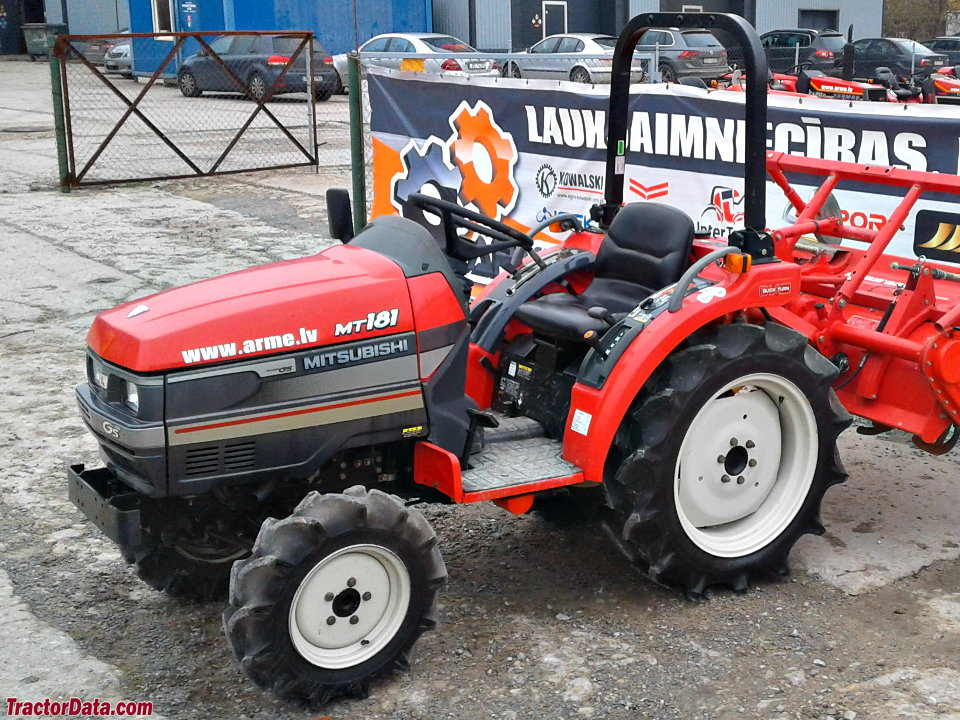

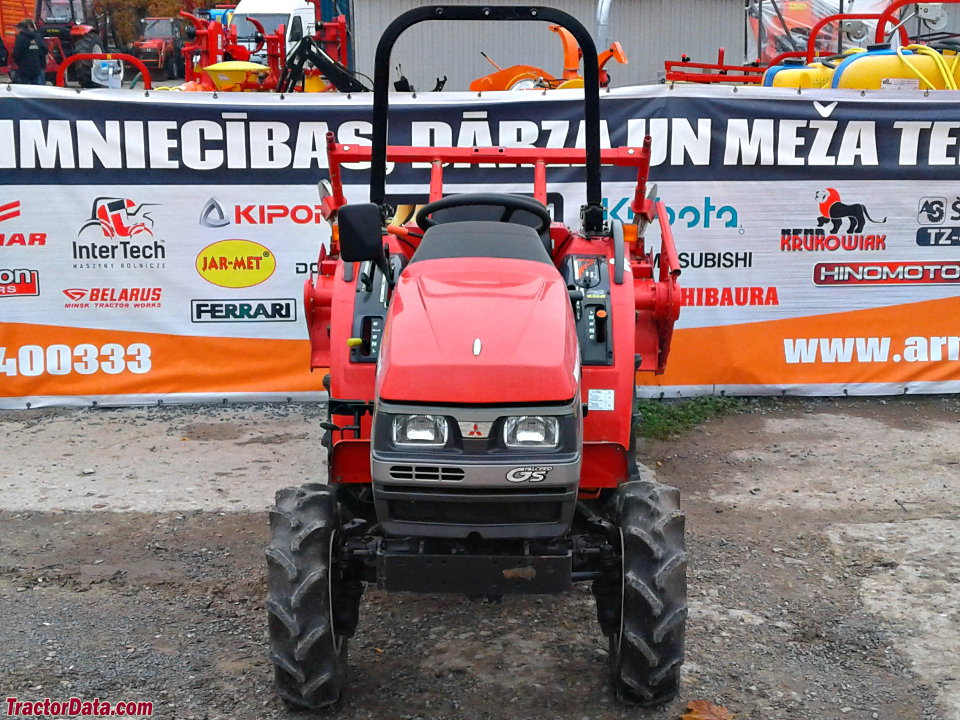

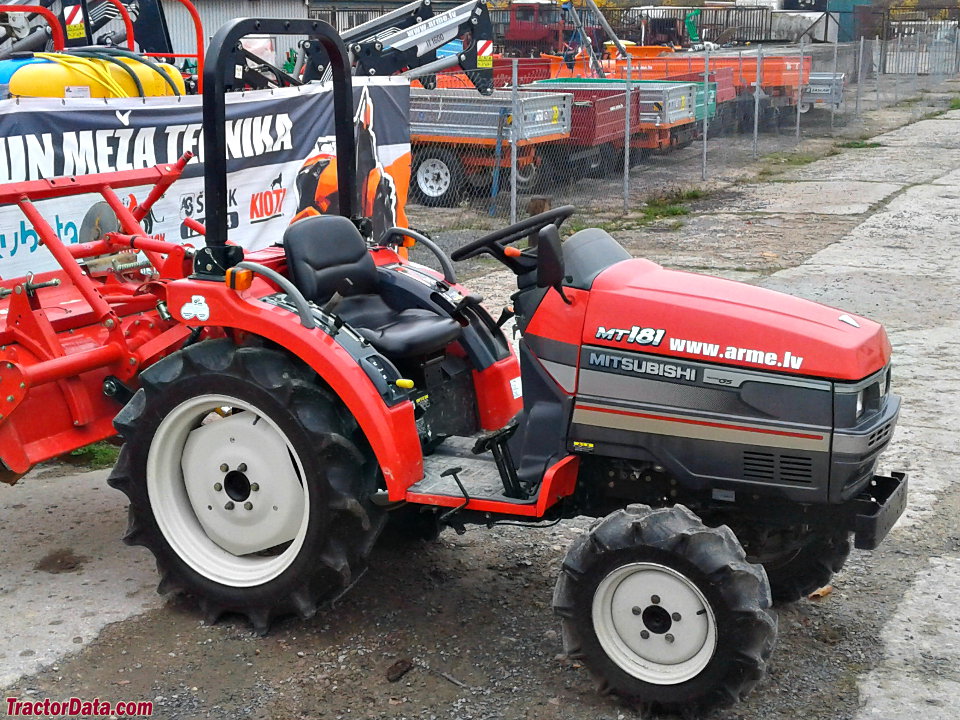

The Mitsubishi MT181 is a tractor model rated at 18 hp — making it one of the more compact options in its class. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 6-speed gearbox. Listed weight is 820 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
820 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
18 hp
Recorded weight
820 kg
Transmissions
6-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine13.2 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 79 mmReference
Power13.2 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM532@2500Reference
Engine RPM832@2500Reference
Engine RPM1355@2500Reference
Engine RPM-898@2500Reference
Dimensions
Wheelbase137 cmReference
Weight820 kgReference
Front tire6-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference
Length261 cmReference
Width106 cmReference
Height187 cmReference
Ground clearance30 cmReference
Front tread87 cmReference
Rear tread81/96 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
