Tractor · 2000Unverified

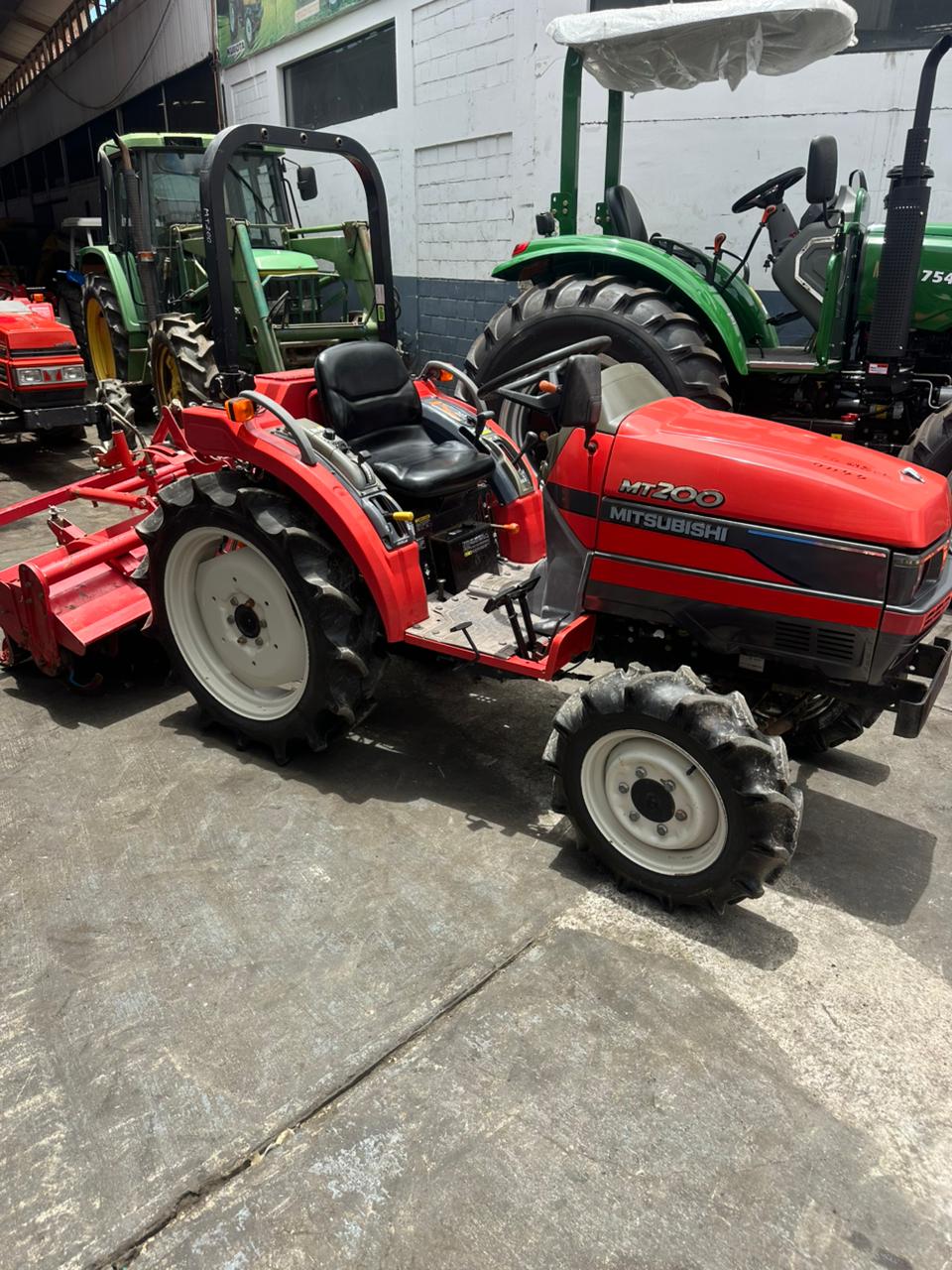

Mitsubishi MT200
Mitsubishi MT200 — MT Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
914 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (MT200D)Reference
Steeringhydrostatic powerReference
Drum brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine14.9 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power14.9 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)13.0 kWReference
Pressure147.1 barReference
Pump flow22.1 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition control, draft control optionalReference
Rear lift (at ends)635 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase147 cmReference
Weight914 kgReference
Front tire5.00-12Reference
Rear tire9.5-16 (4WD)Reference
Standard tires (ag)Front: 5.00-12. Rear: 9.5-16 (4WD)Reference
Length270 cmReference
Width116 cmReference
Height (ROPS)209 cmReference
4WD Weight914 kgReference
Ground clearance24 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
