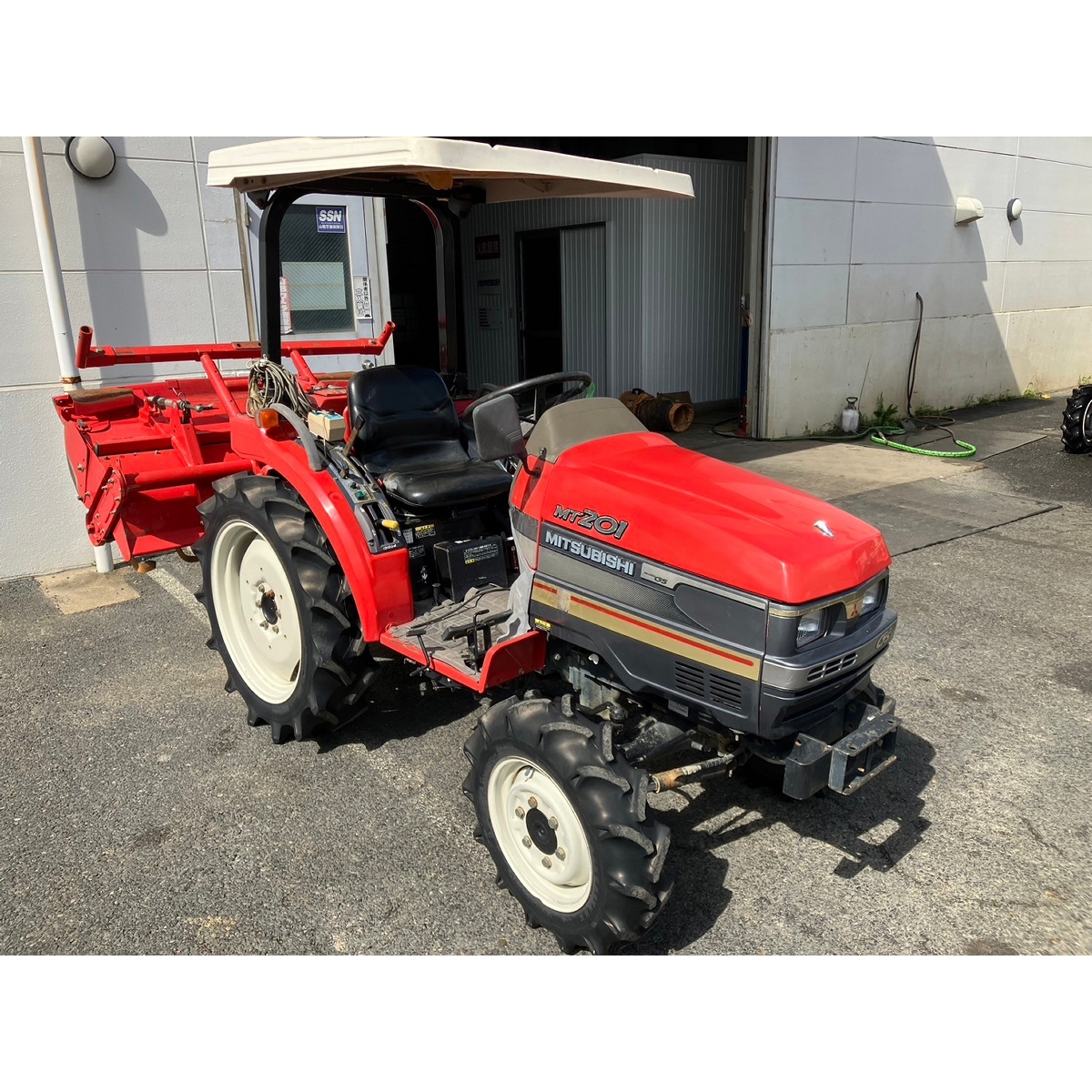

The Mitsubishi MT201 is a tractor rated at 20 hp — making it one of the more compact options in its class. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 8-speed gearbox. Listed weight is 894 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
894 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
20 hp
Recorded weight
894 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine14.7 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2500Reference
Engine RPM809@2500Reference
Engine RPM1321@2500Reference
Engine RPM-1042@2500Reference
Dimensions
Wheelbase147 cmReference
Weight894 kgReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length270 cmReference
Width115 cmReference
Height192 cmReference
Ground clearance33 cmReference
Front tread94 cmReference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
