Tractor · 1990Unverified

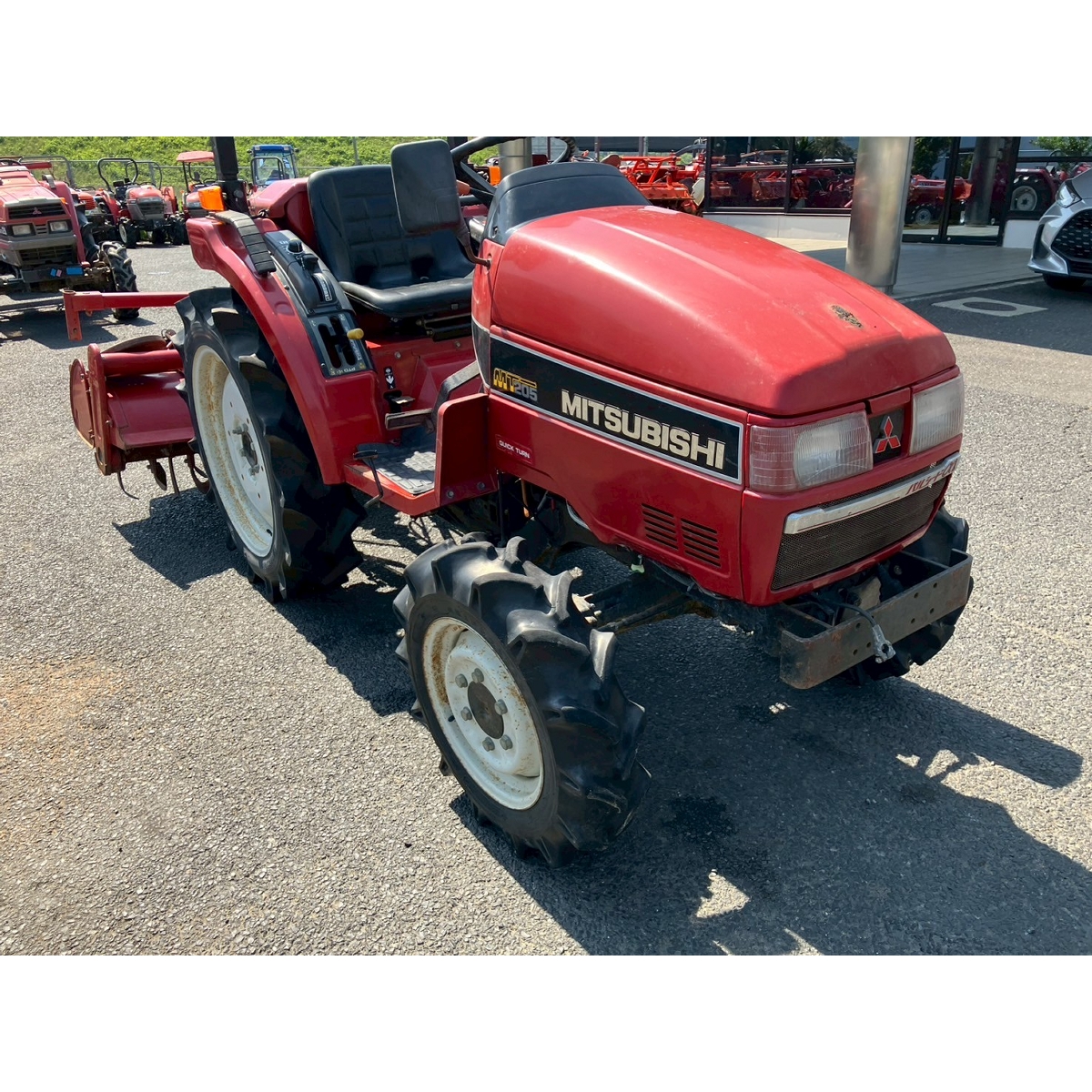

Mitsubishi MT205
Mitsubishi MT205 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
820 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator stationReference
Engine
Mitsubishi 1.2L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine14.9 kWReference
Mitsubishi K3GReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke82 x 78 mmReference
Power14.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)14.9 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM560@2500Reference
Engine RPM805@2500Reference
Engine RPM1230@2500Reference
Dimensions
Wheelbase147 cmReference
Weight820 kgReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length270 cmReference
Width115 cmReference
Height133 cmReference
Ground clearance33 cmReference
Front tread94 cmReference
Rear tread88 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
