Tractor · 1984Unverified

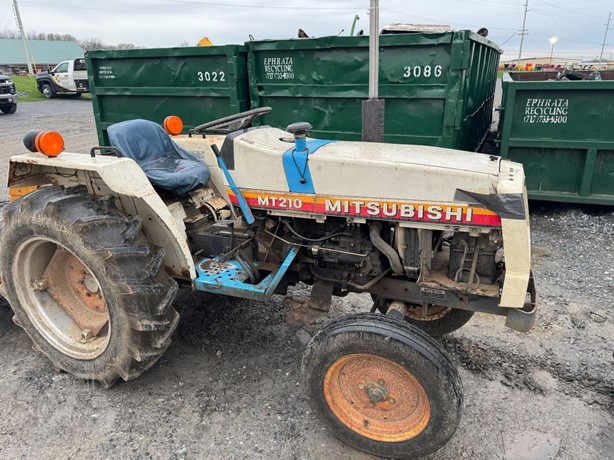

Mitsubishi MT210
Mitsubishi MT210 · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1720 to 1852 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Mechanical drum brakesReference
Open operator station. Two-post fixed ROPS available.Reference
Variants
MT2102WDReference
MT210D4WDReference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Engine15.7 kWReference
Mitsubishi K3DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 78 mmReference
Power15.7 kWReference
Air cleanerdryReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed synchromeshReference
TypesynchromeshReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)13.6 kWReference
Typeopen centerReference
Pump flow17.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2479Reference
Engine RPM1000@2180Reference
Dimensions
Wheelbase152 cmReference
Weight1720 to 1852 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
4WD Optional tires (ag)Front: 5-14. Rear: 12.4-16Reference
2WD Lawn/turf front20x8.00-10Reference
4WD Lawn/turf front24x8.50-12Reference
Lawn/turf rear13.6-16Reference
Length260 cmReference
2WD Width112 cmReference
4WD Width118 cmReference
Height135 cmReference
2WD Weight780 kgReference
4WD Weight840 kgReference
2WD Ground clearance34 cmReference
4WD Ground clearance27 cmReference
2WD Front tread98 to 118 cmReference
4WD Front tread97 cmReference
Rear tread87/102 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH60Reference
Speeds
With 9.5-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
