Tractor · 1982Unverified

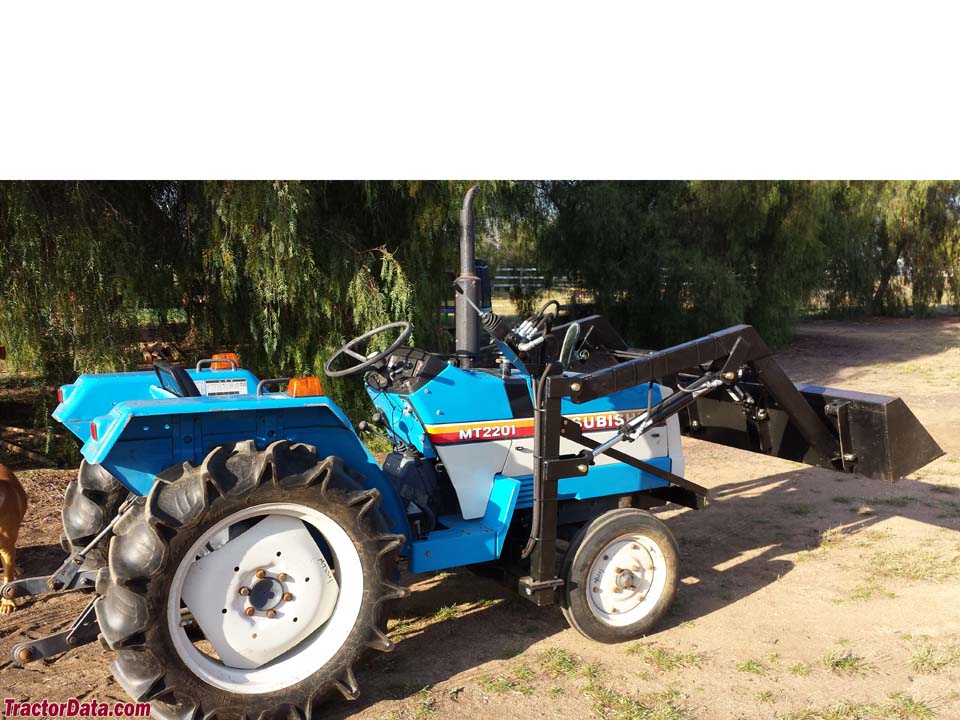

Mitsubishi MT2201
Mitsubishi MT2201 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
2138 to 2392 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
MT2201D4WDReference
Engine
Mitsubishi 1.3L 4-cyl dieselReference
Fuel tank28.0 LReference
Engine16.2 kWReference
Mitsubishi K4DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power16.2 kWReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
12-speedReference
TransmissiongearReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM562@2400Reference
Engine RPM764@2400Reference
Engine RPM1020@2400Reference
Engine RPM1427@2400Reference
Dimensions
2WD Wheelbase157 cmReference
4WD Wheelbase159 cmReference
Weight2138 to 2392 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length293 cmReference
Width123 cmReference
2WD Height (exhaust)196 cmReference
4WD Height (exhaust)195 cmReference
2WD Weight969 kgReference
4WD Weight1085 kgReference
2WD Ground clearance29 cmReference
4WD Ground clearance25 cmReference
2WD Front tread96/105 cmReference
4WD Front tread100 cmReference
4WD Rear tread97/111 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
