Tractor · Unverified

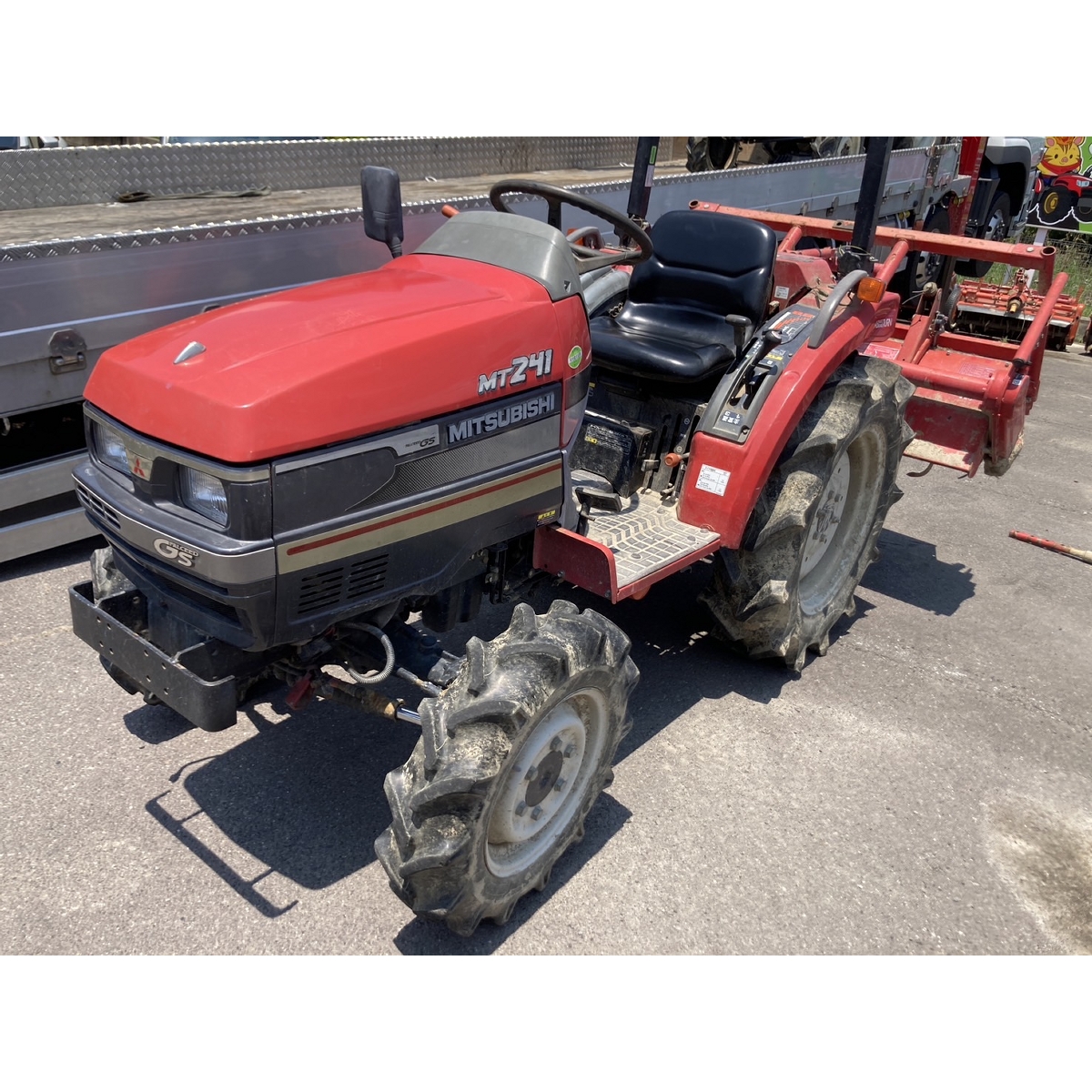

Mitsubishi MT241
Mitsubishi MT241 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
894 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine17.7 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power17.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2500Reference
Engine RPM809@2500Reference
Engine RPM1321@2500Reference
Engine RPM-1042@2500Reference
Dimensions
Wheelbase147 cmReference
Weight894 kgReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length270 cmReference
Width115 cmReference
Height192 cmReference
Ground clearance33 cmReference
Front tread94 cmReference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
