Tractor · 2015Unverified

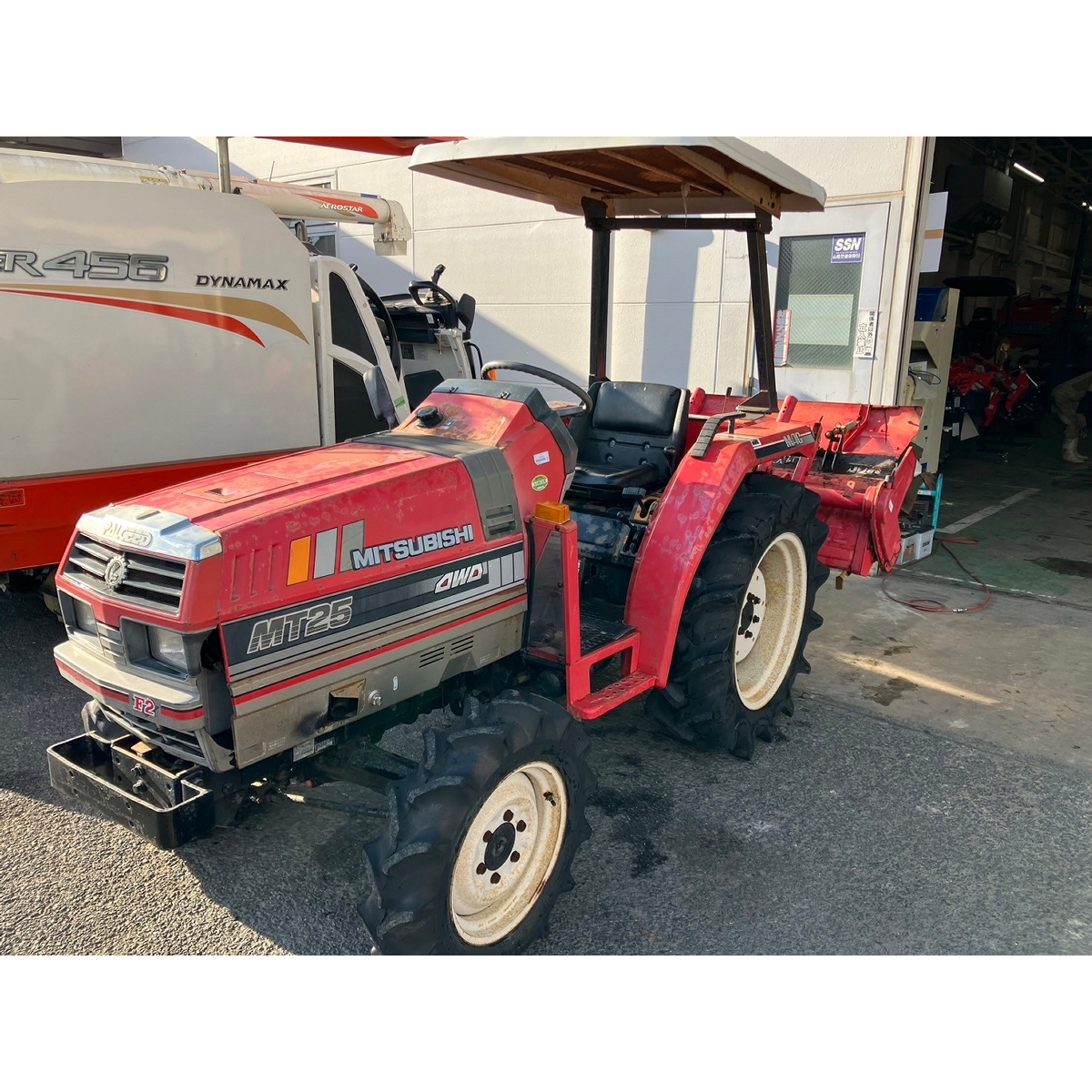

Mitsubishi MT25
Mitsubishi MT25 — MT Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1819 to 1863 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine19.4 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power19.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
hydrostaticReference
Gear Weight825 kgReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Gear PTO (claimed)16.3 kWReference
Hydro PTO (claimed)15.1 kWReference
Pump flow22.0 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1000 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTOoptionalReference
Mid PTO Type2000 (1.0)Reference
Dimensions
Weight1819 to 1863 poundsReference
Front tire7-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 7-12. Rear: 9.5-16Reference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear33x12.5-16.5Reference
Length277 cmReference
Width137 cmReference
Height (ROPS)214 cmReference
Hydro Weight845 kgReference
Ground clearance28 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
