Tractor · 1982Unverified

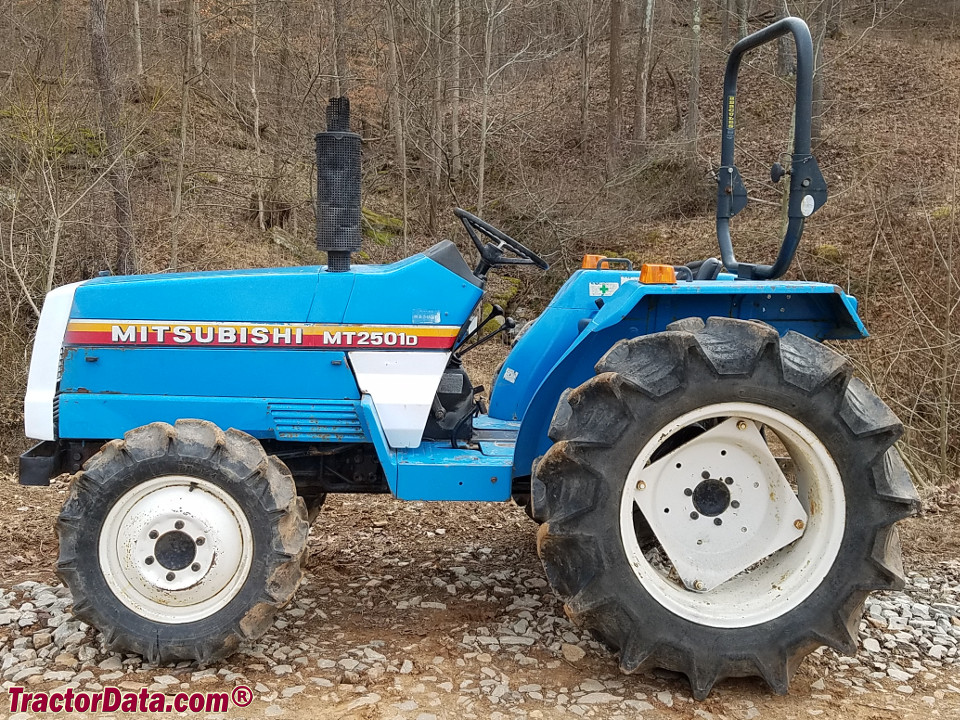

Mitsubishi MT2501

Name: Mitsubishi MT2501
Brand: Mitsubishi

Mitsubishi MT2501 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.

The Mitsubishi MT2501 is a compact tractor model rated at 25 hp. Manufactured between 1982 and 1985, it features a 4-cylinder diesel liquid-cooled engine and a four-wheel drive transmission with a 12-speed gearbox. The listed weight of the MT2501 ranges from 2271 to 2480 pounds. It is designed for use in areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

2271 to 2480 pounds

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

25 hp

Recorded weight

1030 kg

Transmissions

12-speed

Production years

1982-1985

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMitsubishiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

MT2501D4WDReference

Engine

Mitsubishi 1.4L 4-cyl dieselReference

Fuel tank28.0 LReference

Engine18.4 kWReference

Mitsubishi K4EReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Power18.4 kWReference

Rated RPM2400Reference

Starter volts12Reference

Transmission

12-speedReference

TransmissiongearReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM562@2400Reference

Engine RPM764@2400Reference

Engine RPM1020@2400Reference

Engine RPM1427@2400Reference

Dimensions

2WD Wheelbase157 cmReference

4WD Wheelbase159 cmReference

Weight2271 to 2480 poundsReference

Length293 cmReference

Width131 cmReference

2WD Height (exhaust)198 cmReference

4WD Height (exhaust)197 cmReference

2WD Weight1030 kgReference

4WD Weight1124 kgReference

2WD Ground clearance31 cmReference

4WD Ground clearance25 cmReference

2WD Front tread98/107/118 cmReference

4WD Front tread104 cmReference

Rear tread100 to 130 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
