Tractor · 2000Unverified

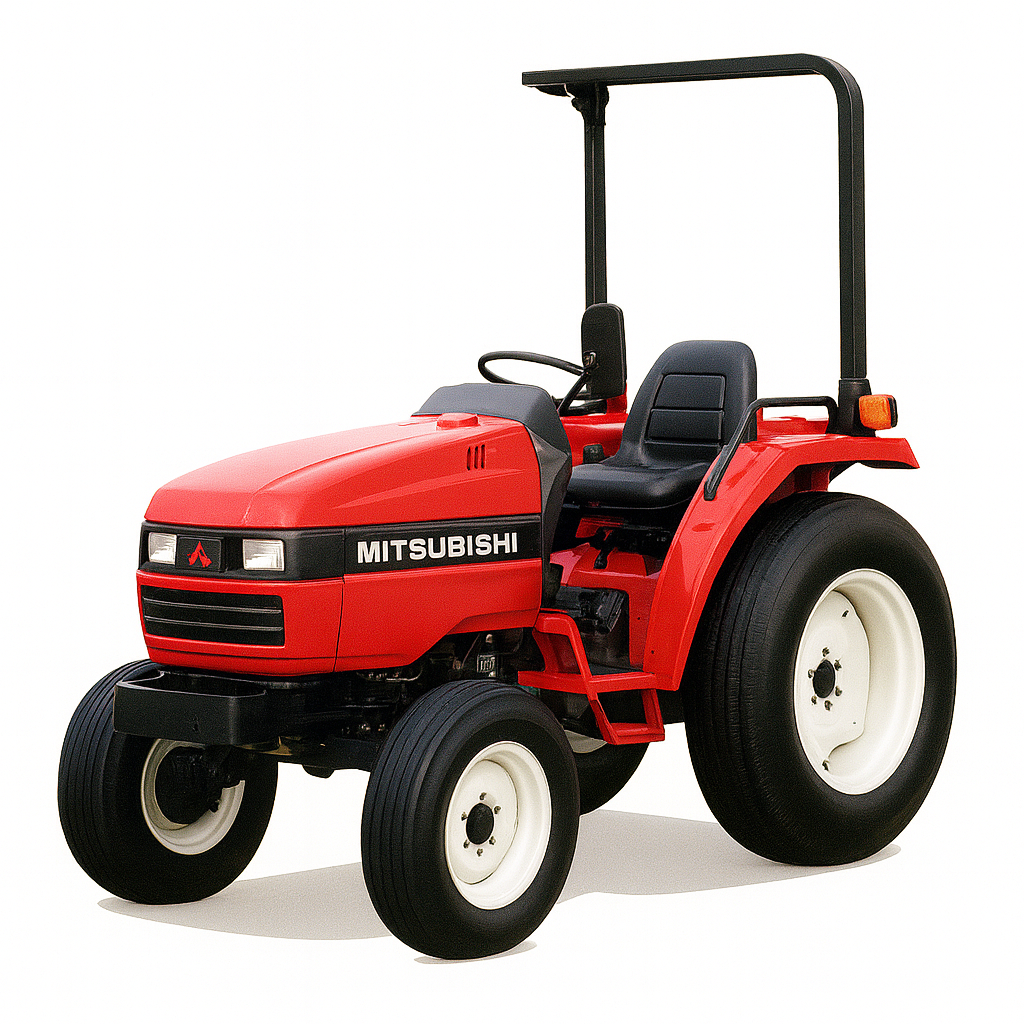

Mitsubishi MT260

Name: Mitsubishi MT260
Brand: Mitsubishi

Mitsubishi MT260 — MT Series · 23 hp. Reference specifications; pending source verification.

The Mitsubishi MT260 is a tractor model with a rated power of 23 hp, categorising it among the lighter models in its class. Manufactured from 2000 to 2007, the MT260 features a 3-cylinder diesel liquid-cooled engine, paired with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight is listed as 1114 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

1114 kg

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

23 hp

Recorded weight

1114 kg

Transmissions

9-speed gear

Production years

2000-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMitsubishiReference

Compact Utility tractorReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (MT260D)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Mitsubishi 1.3L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine19.4 kWReference

MitsubishiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Power19.4 kWReference

Fuel systemindirect injectionReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

9-speed gearReference

hydrostaticReference

TypegearReference

Gears9 forward and 3 reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)17.2 kWReference

Pressure147.1 barReference

Pump flow29.6 lpmReference

Total flow29.5 lpmReference

Steering flow13.4 lpmReference

Rear TypeIReference

Controlposition control, draft control optionalReference

Rear lift (at ends)1000 kgReference

Rear PTOliveReference

Rear PTO Type540/1000 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase165 cmReference

Weight1114 kgReference

Front tire7-14Reference

Rear tire9.5-24 (4WD)Reference

Standard tires (ag)Front: 7-14. Rear: 9.5-24 (4WD)Reference

Length292 cmReference

Width132 cmReference

Height (ROPS)220 cmReference

4WD Weight1114 kgReference

Ground clearance30 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
