Tractor · 2007Unverified

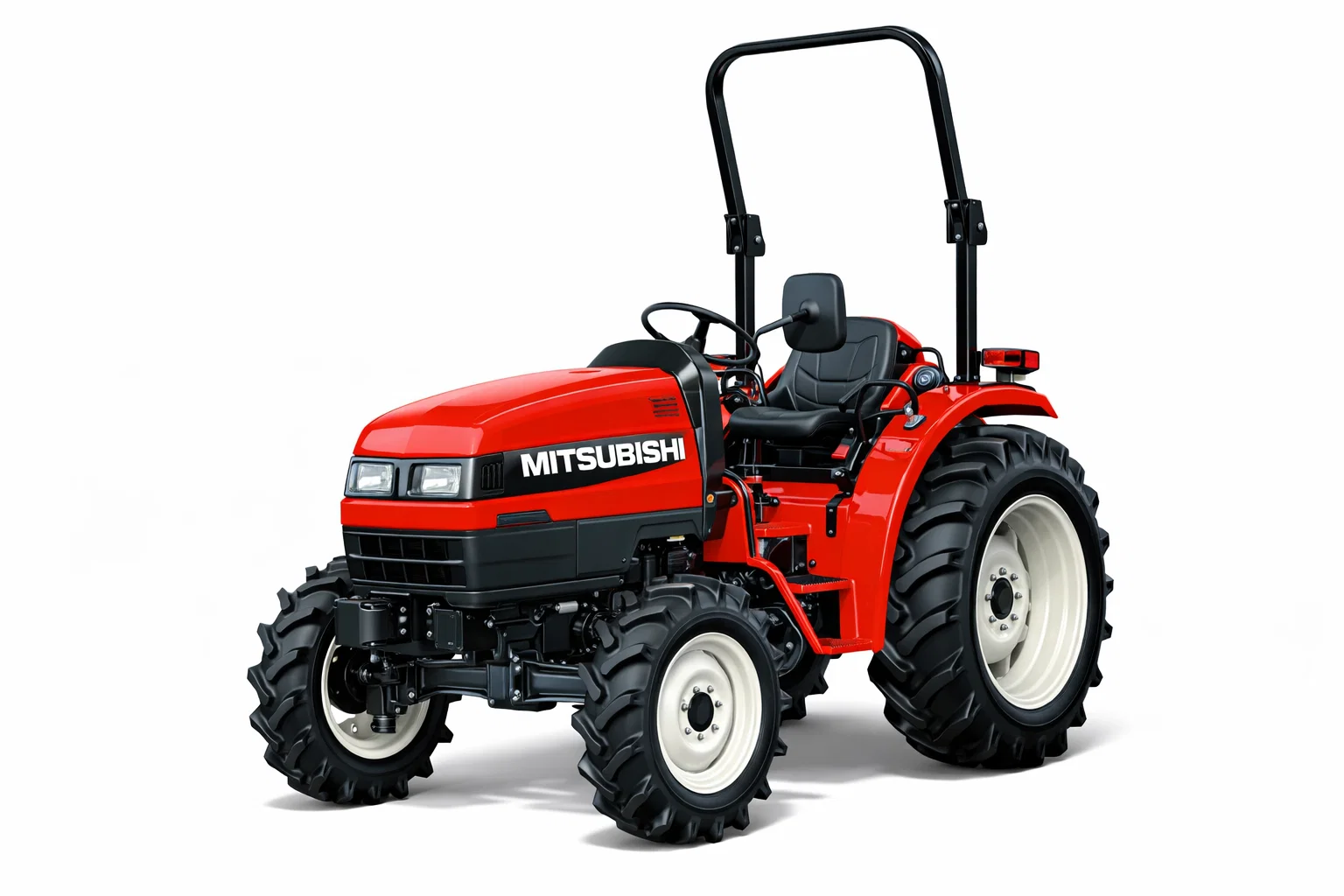

Mitsubishi MT2600
Mitsubishi MT2600 — MT Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1114 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine19.4 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power19.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Pressure127.6 barReference
Pump flow23.1 lpmReference
Steering flow13.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)1000 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2376Reference
Engine RPM1000@2421Reference
Mid PTOoptionalReference
Dimensions
Wheelbase165 cmReference
Weight1114 kgReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length303 cmReference
Width132 cmReference
Height (ROPS)245 cmReference
Ground clearance30 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
