Tractor · 2010Unverified

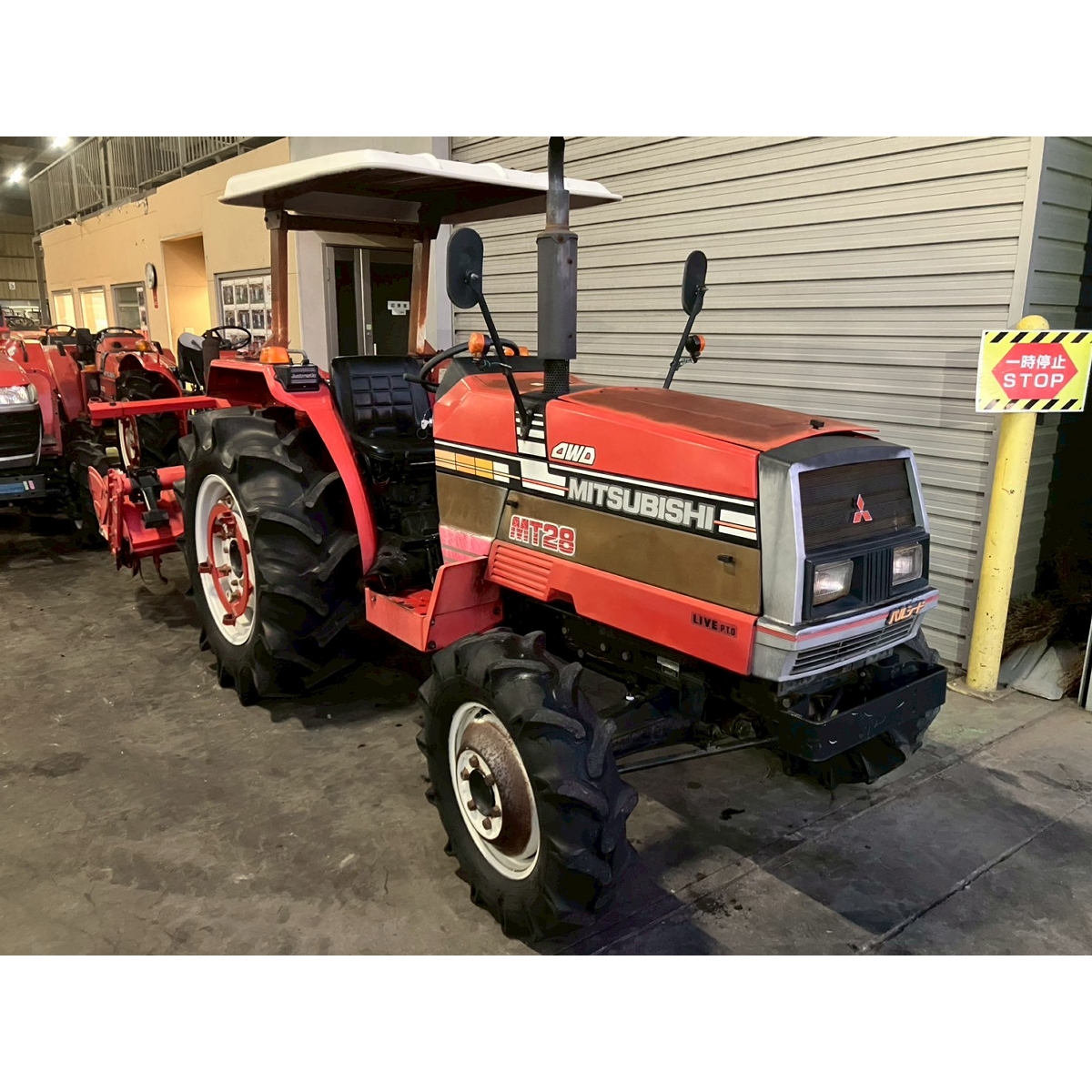

Mitsubishi MT28

Name: Mitsubishi MT28
Brand: Mitsubishi

Mitsubishi MT28 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The Mitsubishi MT28 is a compact tractor with a rated output of 20 hp, produced in 2010. It features a 3-cylinder diesel liquid-cooled engine, which drives the tractor's four-wheel drive system through a hydrostatic transmission. The listed weight of the MT28 ranges from 2579 to 2635 pounds. It is designed for jobs covering areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

2579 to 2635 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

20 hp

Transmissions

8-speed synchronized shuuttle

Production years

2010-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMitsubishiReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable mid-mount or rear-mount ROPS.Reference

Engine

Mitsubishi 1.3L 3-cyl dieselReference

Fuel tank24.5 LReference

Engine20.6 kWReference

Mitsubishi S3L2Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke78 x 92 mmReference

Power20.6 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed synchronized shuuttleReference

hydrostaticReference

Typesynchronized shuuttleReference

Gears8 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)14.5 kWReference

PTO (claimed)14.9 kWReference

Pump flow29.6 lpmReference

Steering flow12.7 lpmReference

Rear TypeIReference

Controlposition control with optional draft controlReference

Rear lift (at ends)1200 kgReference

Rear PTOindependentReference

Rear PTO Type540 (hydro)Reference

Rear PTO Type540/1000 (gear)Reference

Mid PTOoptional (hydro)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase170 cmReference

Weight2579 to 2635 poundsReference

Front tire7-16Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear13.6-16Reference

Length319 cmReference

Width139 cmReference

Rear Height (ROPS)238 cmReference

Mid Height (ROPS)222 cmReference

1169 kgReference

1190 kgReference

1174 kgReference

1195 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
