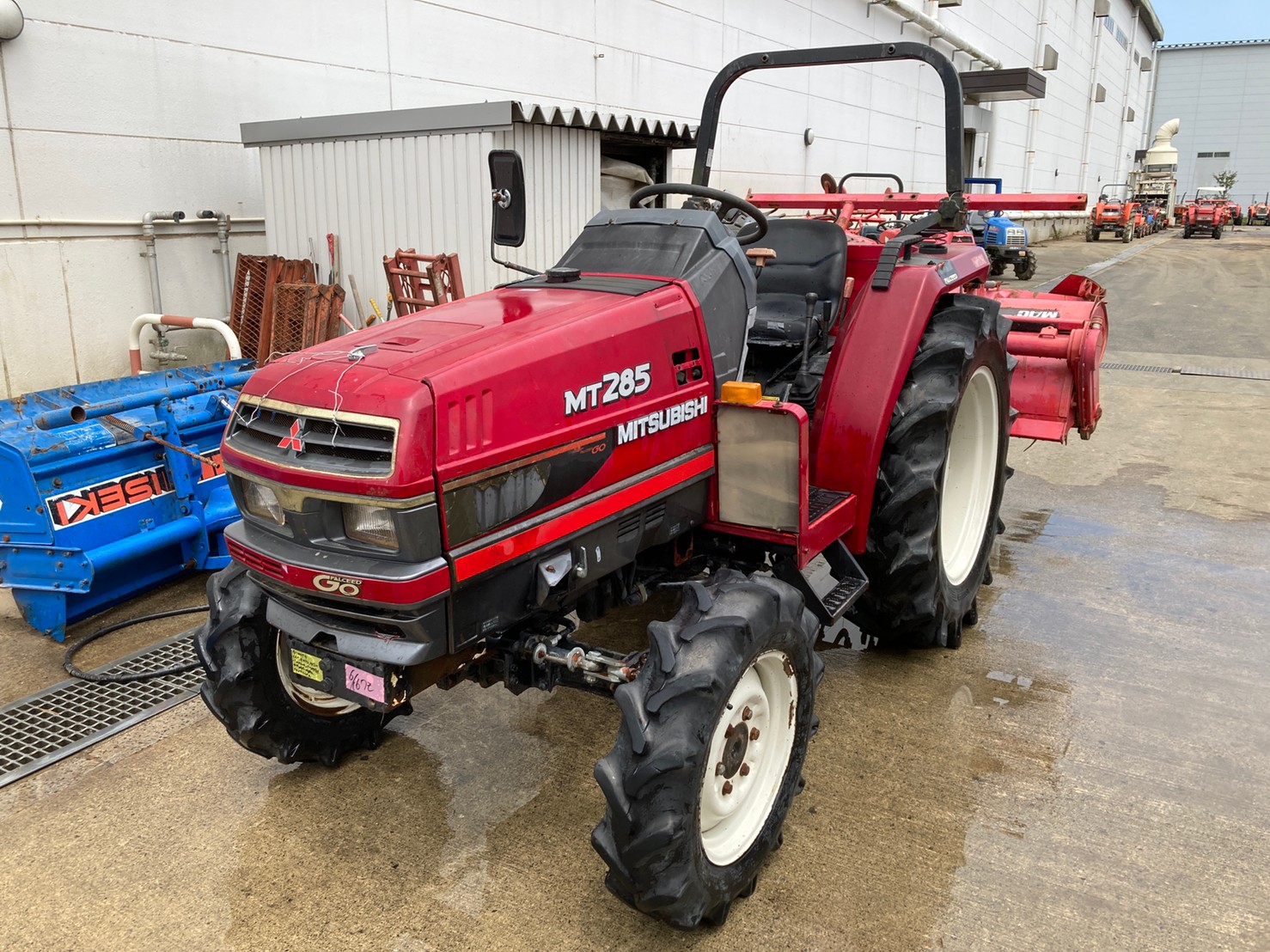

The Mitsubishi MT285 is a compact tractor model rated at 19 hp, featuring a 3-cylinder diesel liquid-cooled engine. It is equipped with four-wheel drive and a 6-speed gearbox, and has a listed weight of 625 kg. The MT285 is suitable for tasks on small to medium-sized farms or acreages of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
625 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
19 hp
Recorded weight
625 kg
Transmissions
6-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Four-wheel driveReference
Engine
Mitsubihi 0.9L 3-cyl dieselReference
Fuel tank18.0 LReference
Engine13.8 kWReference
Mitsubihi K3CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke70 x 78 mmReference
Power13.8 kWReference
Compression23:1Reference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity5.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Typeopen centerReference
Pressure132.4 barReference
Pump flow12.9 lpmReference
Rear TypeIReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase142 cmReference
Weight625 kgReference
Front tire5-12Reference
Rear tire8-18Reference
Ag front5-12Reference
Ag rear8-18Reference
Length222 cmReference
Width97 cmReference
Height (steering wheel)118 cmReference
Ground clearance21 cmReference
Front tread78 cmReference
Rear tread73/88 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
