Tractor · 2000Unverified

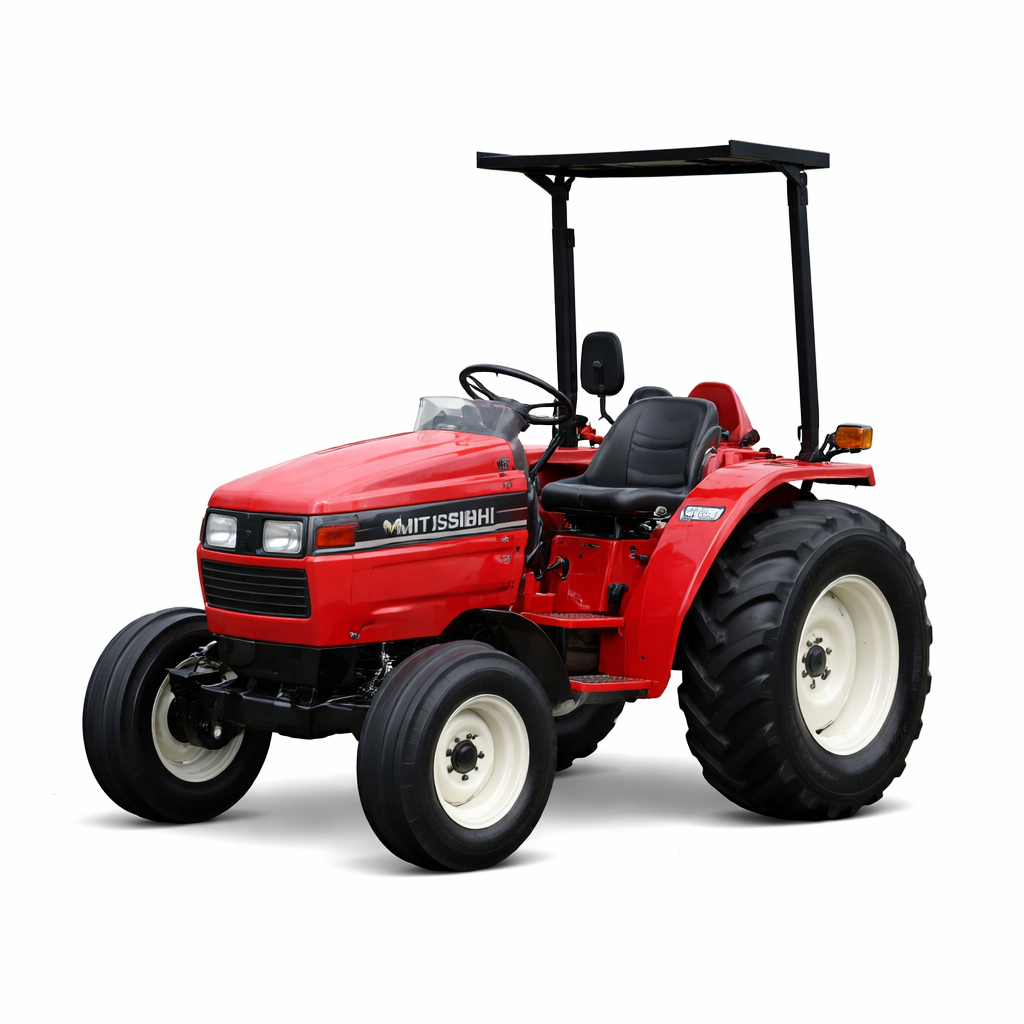

Mitsubishi MT301
Mitsubishi MT301 — MT Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1255 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (MT301D)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine22.4 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power22.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2750Reference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
Pressure147.1 barReference
Pump flow29.6 lpmReference
Total flow29.9 lpmReference
Steering flow13.4 lpmReference
Rear TypeIReference
Controlposition control, draft control optionalReference
Rear lift (at ends)1000 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase170 cmReference
Weight1255 kgReference
Front tire7-14Reference
Rear tire11.2-24 (4WD)Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24 (4WD)Reference
Length292 cmReference
Width137 cmReference
Height (ROPS)223 cmReference
4WD Weight1255 kgReference
Ground clearance32 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
