Tractor · 1999Unverified

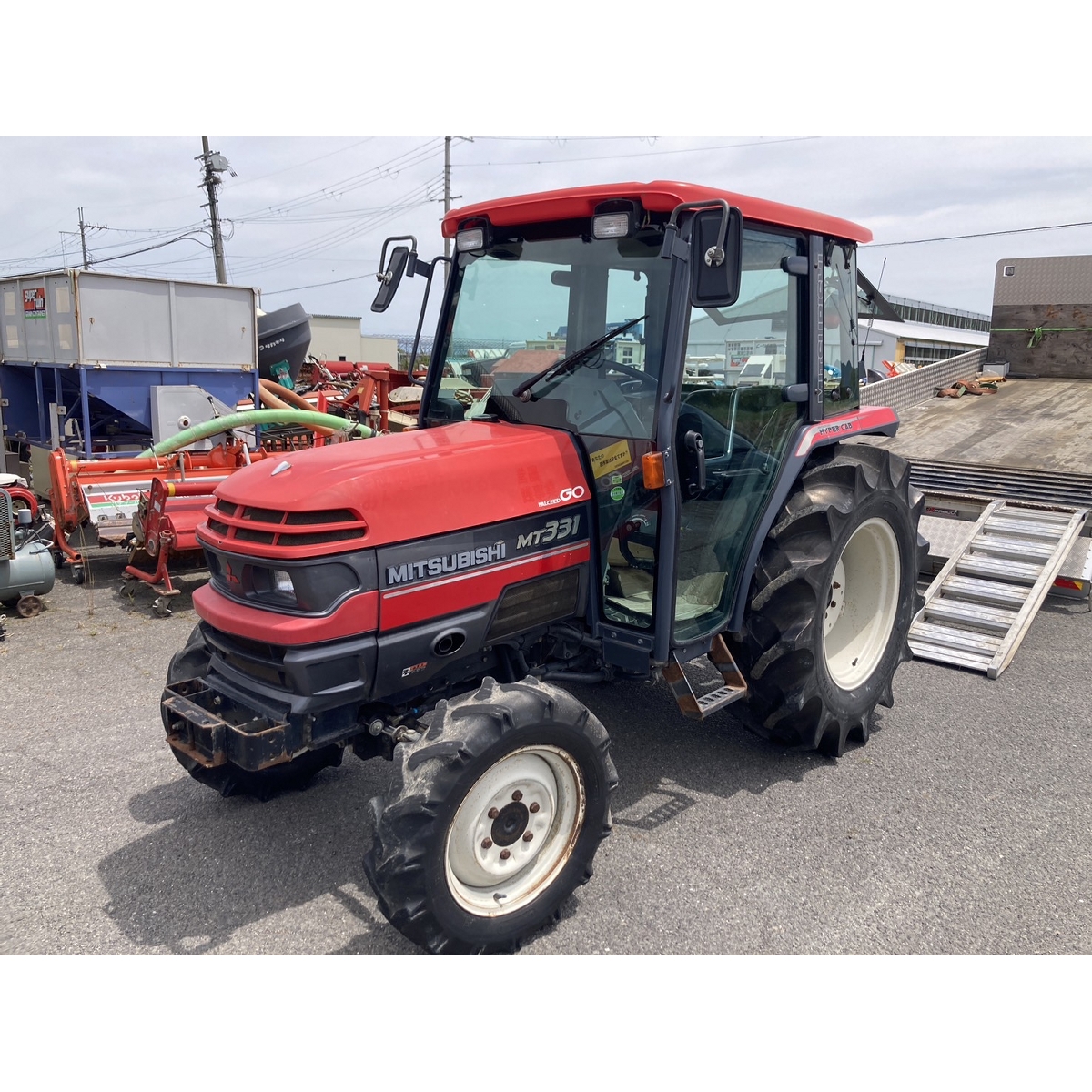

Mitsubishi MT331
Mitsubishi MT331 — GO Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
3020 to 3351 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank28.0 LReference
Engine24.3 kWReference
Mitsubishi S4LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power24.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears in four ranges with left-hand shuttle shift.Reference
PTO & Hydraulics
Rear TypeJISIReference
Rear lift1799 kgReference
Rear PTO540 (1.375)Reference
Dimensions
Wheelbase177 cmReference
Weight3020 to 3351 poundsReference
Front tire7-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 7-16. Rear: 13.6-24Reference
Length313 cmReference
Width144 cmReference
Height (ROPS)199 cmReference
ROPS Weight1369 kgReference
Cab Weight1520 kgReference
Ground clearance34 cmReference
Front tread111 cmReference
Rear tread110 to 140 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
