Tractor · 2007Unverified

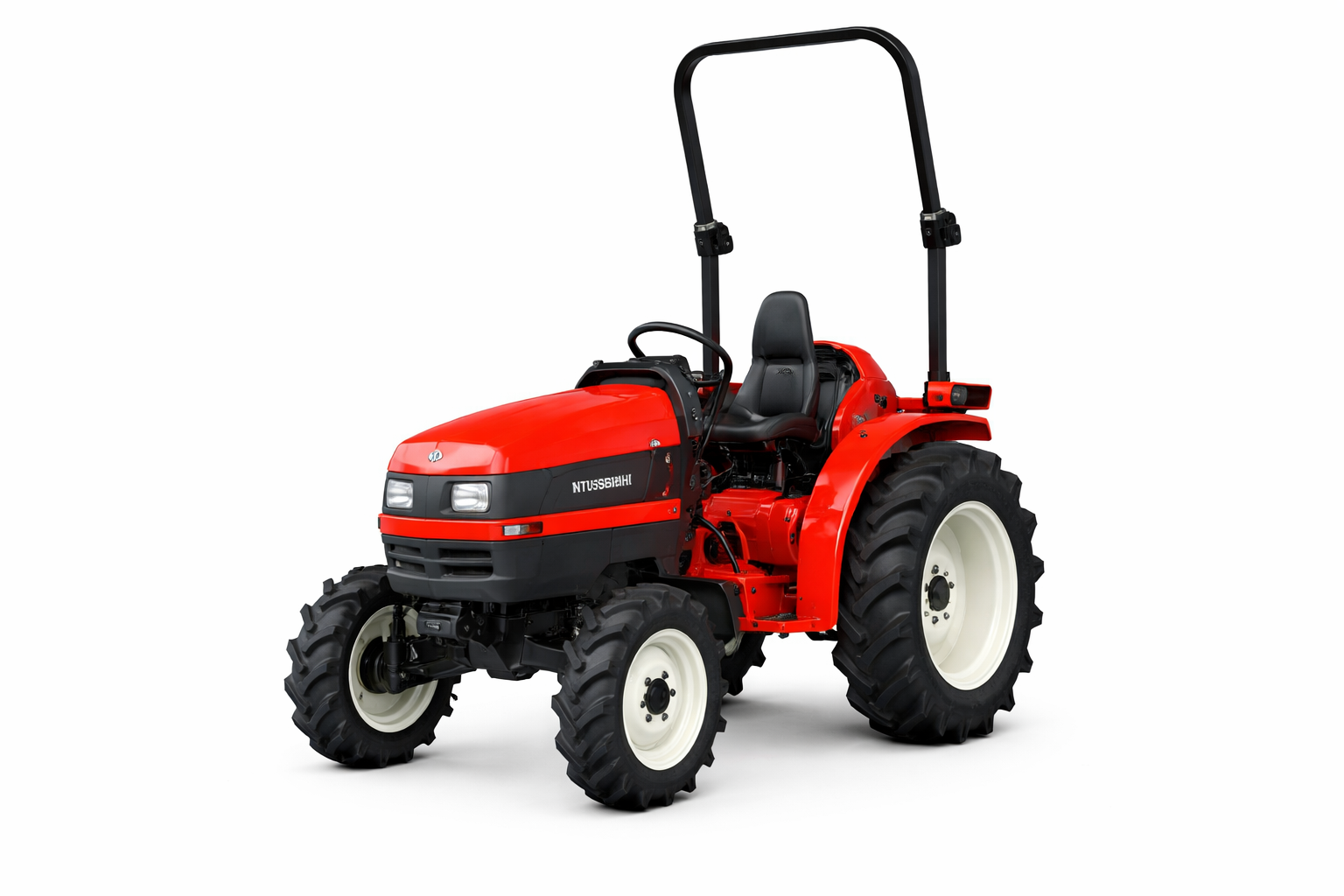

Mitsubishi MT3500
Mitsubishi MT3500 — MT Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1255 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine26.1 kWReference
MitsubishiReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power26.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Pressure127.6 barReference
Pump flow28.0 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)1000 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2376Reference
Engine RPM1000@2421Reference
Mid PTOoptionalReference
Dimensions
Wheelbase169 cmReference
Weight1255 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Lawn/turf front212/80D15Reference
Lawn/turf rear355/80D20Reference
Length303 cmReference
Width137 cmReference
Height (ROPS)250 cmReference
Ground clearance32 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
