Tractor · 2010Unverified

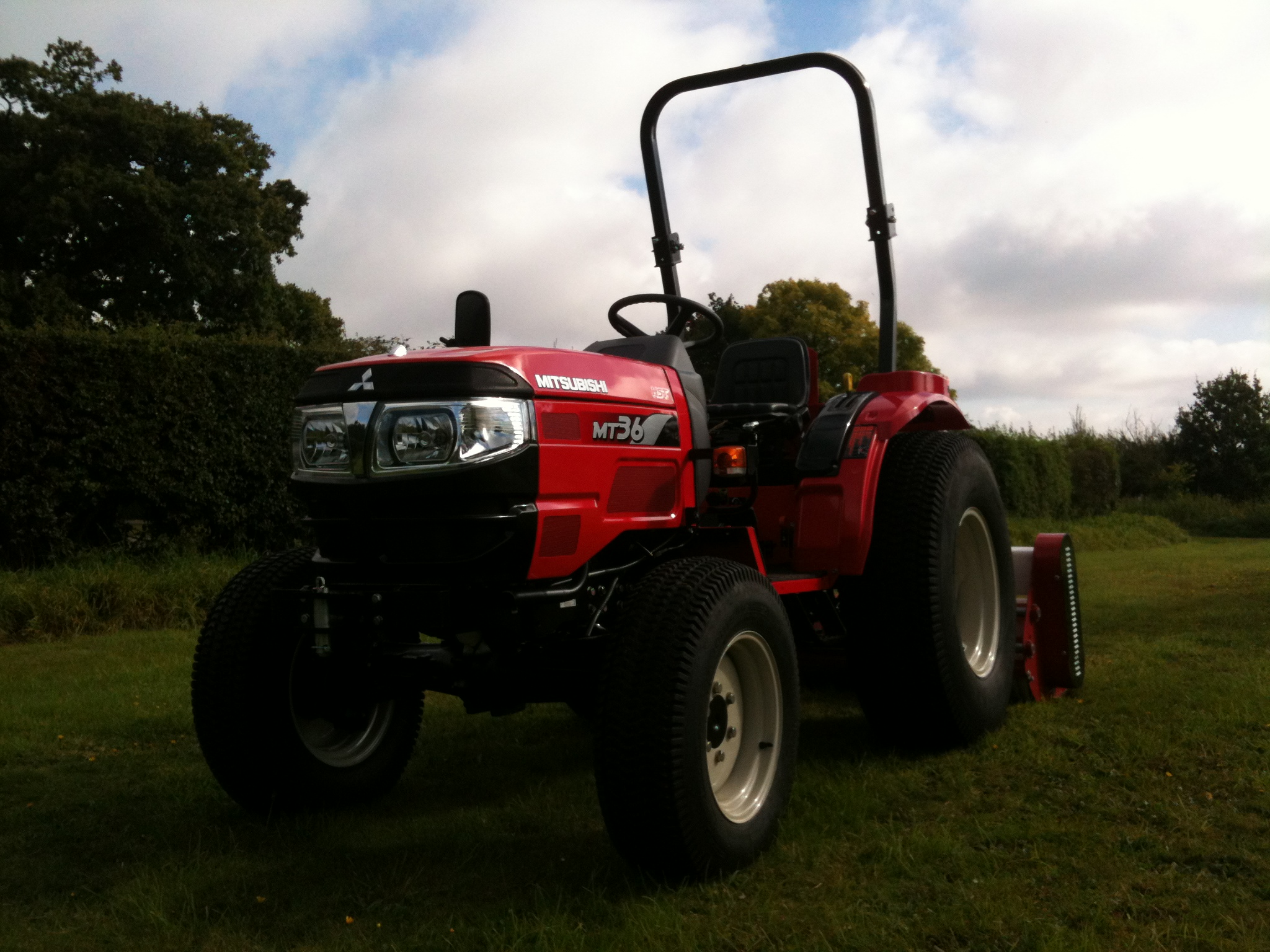

Mitsubishi MT36
Mitsubishi MT36 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2657 to 2712 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable mid-mount or rear-mount ROPS.Reference
Engine
Mitsubishi 1.7L 3-cyl dieselReference
Fuel tank24.5 LReference
Engine27.0 kWReference
Mitsubishi S3L3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Power27.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuuttleReference
hydrostaticReference
Typesynchronized shuuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)20.5 kWReference
PTO (claimed)20.9 kWReference
Pump flow29.0 lpmReference
Steering flow12.7 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)1200 kgReference
Rear PTOindependentReference
Rear PTO Type540 (hydro)Reference
Rear PTO Type540/1000 (gear)Reference
Mid PTOoptional (hydro)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase175 cmReference
Weight2657 to 2712 poundsReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Lawn/turf front212/80D15Reference
Lawn/turf rear355/80D20Reference
Length319 cmReference
Width139 cmReference
Rear Height (ROPS)241 cmReference
Mid Height (ROPS)223 cmReference
1205 kgReference
1225 kgReference
1210 kgReference
1230 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
