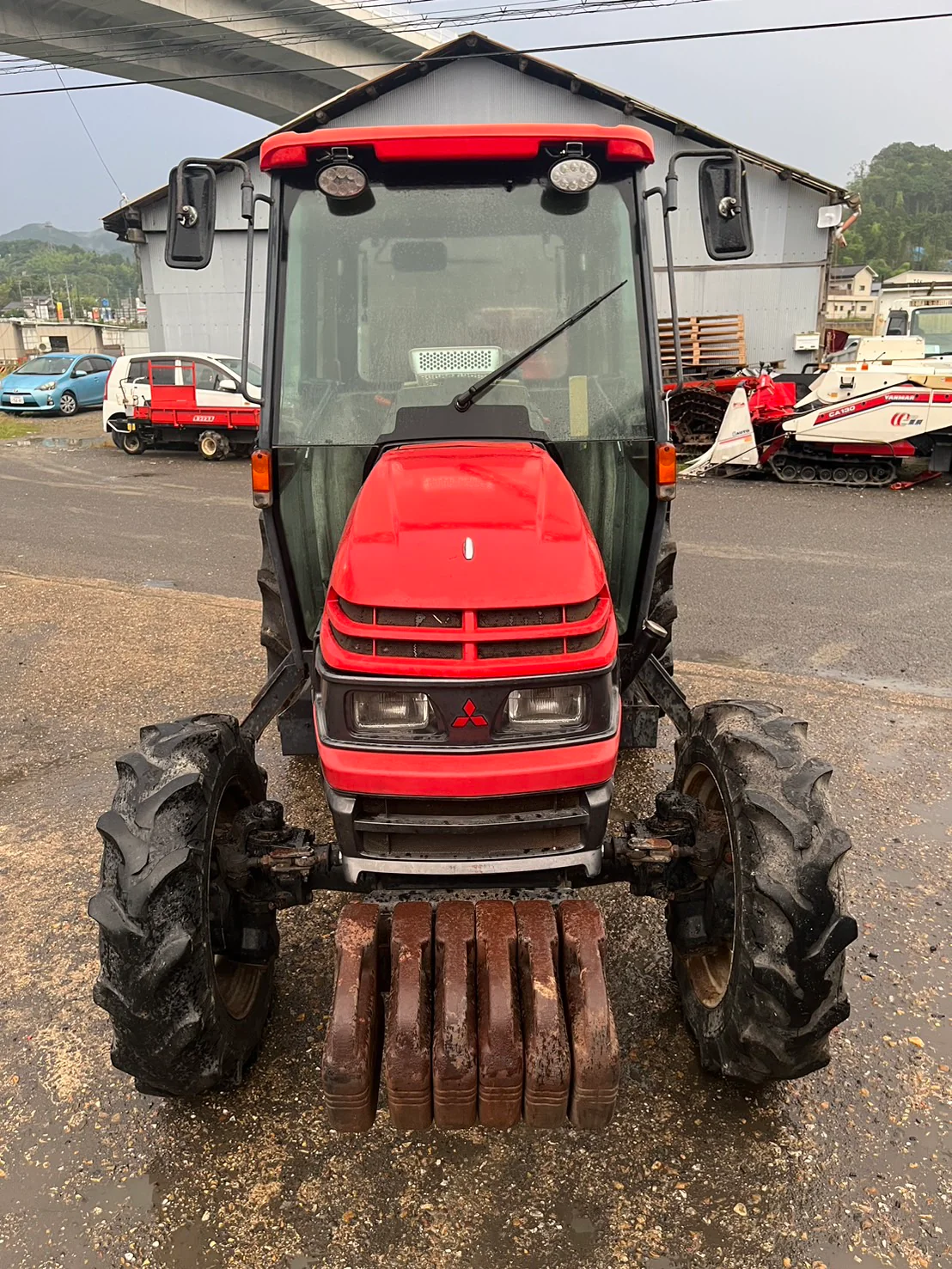

The Mitsubishi MT508 is a compact tractor model rated at 50 hp. Manufactured in 2004, it is equipped with a 4-cylinder diesel liquid-cooled engine and a four-wheel drive system. The MT508 features a 16-speed gearbox, with a listed weight of 1809 kg. It is designed for use on small to medium-sized landholdings of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
1809 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
50 hp
Recorded weight
1809 kg
Transmissions
16-speed
Production years
2004-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-condioning.Reference
Engine
Mitsubishi 2.5L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine37.3 kWReference
Mitsubishi S4Q2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
Power37.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1899 kgReference
Rear PTO Type579/881/1342 (1.375)Reference
Dimensions
Wheelbase199 cmReference
Weight1809 kgReference
Front tire8.3-20Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference
Length350 cmReference
Width155 cmReference
Height238 cmReference
Ground clearance38 cmReference
Front tread124 cmReference
Rear tread121/132/141/151/161/171 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
