Tractor · 2000Unverified

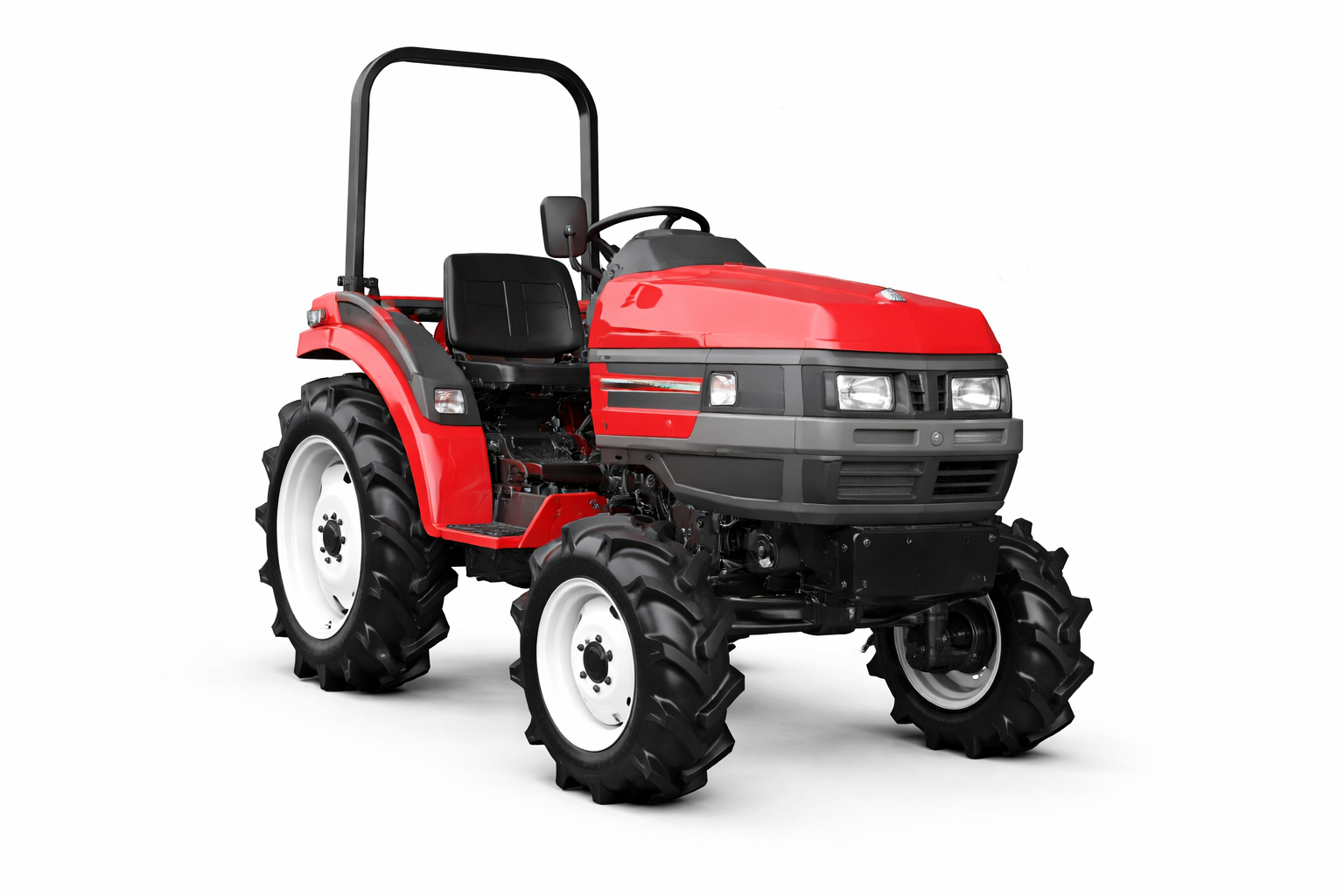

Mitsubishi MTZ20
Mitsubishi MTZ20 — MTZ Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
820 kg
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine14.7 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 79 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 3 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM532@2500Reference
Engine RPM832@2500Reference
Engine RPM1355@2500Reference
Engine RPM-898@2500Reference
Dimensions
Wheelbase137 cmReference
Weight820 kgReference
Front tire6-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference
Length261 cmReference
Width106 cmReference
Height187 cmReference
Ground clearance30 cmReference
Front tread87 cmReference
Rear tread81/96 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
