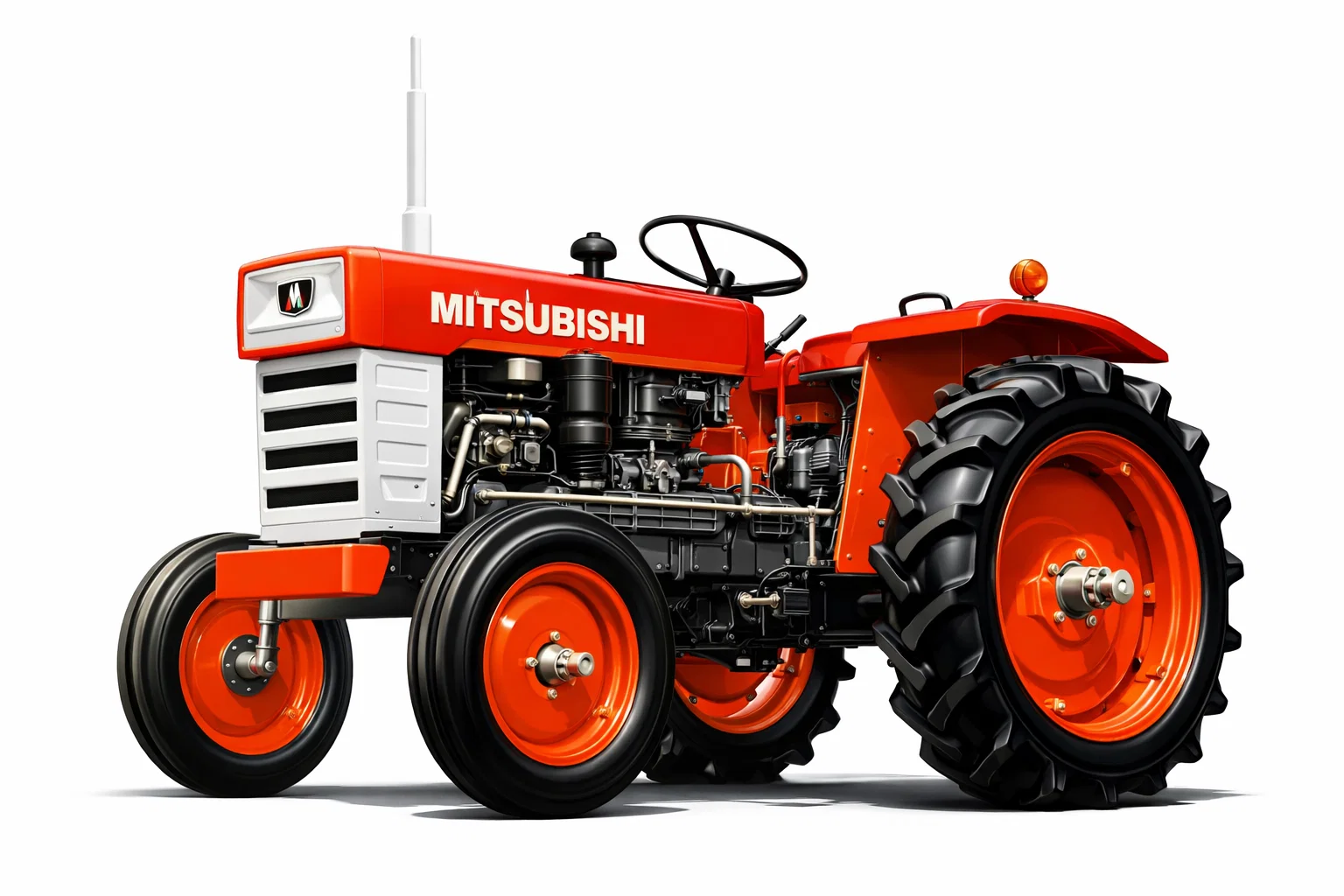

Mitsubishi R2500
Mitsubishi R2500 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1940 to 2050 pounds
Hover a source tag to verify
Overview
ManufacturerMitsubishiReference
Compact Utility tractorReference
Two-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
R2500HChigh clearanceReference
Engine
Mitsubishi 1.2L 2-cyl dieselReference
Engine18.6 kWReference
Mitsubishi 2DRReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke88 x 98 mmReference
Power18.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutch210mm dry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)793 kgReference
Clutch544:2400Reference
Clutch835:2400Reference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase149 cmReference
Weight1940 to 2050 poundsReference
Front tire5.00-15Reference
Rear tire9.5/9-24Reference
Optional tires (ag)Front: 11.2/1-24. Rear:Reference
Optional tires (ag)Front: 12.4/11-24. Rear:Reference
Optional tires (ag)Front: 11.2/10-28. Rear:Reference
Ag front5.00-15Reference
Ag rear9.5/9-24Reference
Length233 cmReference
HC Length239 cmReference
Width152 cmReference
Weight879 kgReference
HC Weight929 kgReference
Ground clearance41 cmReference
HC Ground clearance49 cmReference
Front tread106 to 147 cmReference
Rear tread96 to 149 cmReference
Steering wheel135 cmReference
HC Steering wheel143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Mitsubishi R2500 Height
Exhaust172 cmReference
HC Exhaust180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
