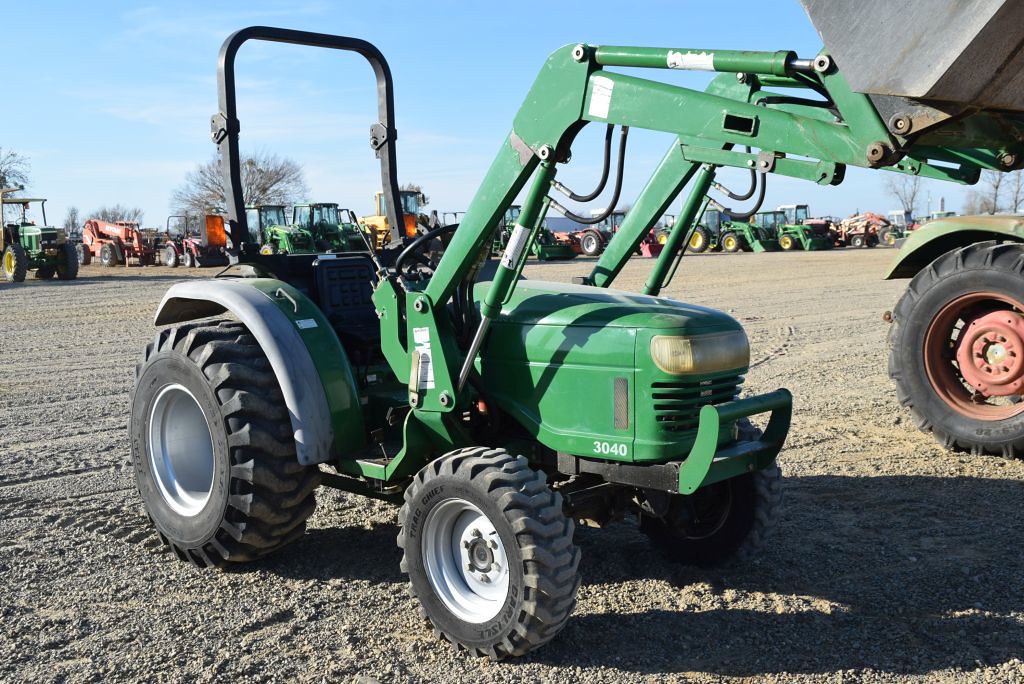

The Montana 3040 is a tractor with a rating of approximately 30 hp, positioning it at the lower end of its class in terms of power. This model was manufactured from 2004 to 2009. It features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a 12-speed gearbox. The tractor's operating weight is listed at 1550 kg, and it is suitable for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1550 kg
Catalogue coverage
Variants represented
2
Richest spec table
53 rows
Recorded power
30 hp
Recorded weight
1550 kg
Transmissions
12-speed sync shuttle
Production years
2004-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMontanaReference
ManufacturerLSReference
Compact Utility tractorReference
Built in KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine22.4 kWReference
Mitsubishi S4LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power22.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow29.6 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1350 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase160 cmReference
Weight1550 kgReference
Front tire8-16Reference
Rear tire12.4-24Reference
Ag front8-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length330 cmReference
Height222 cmReference
Ground clearance33 cmReference
Montana 3040 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
