Tractor · 2004Unverified

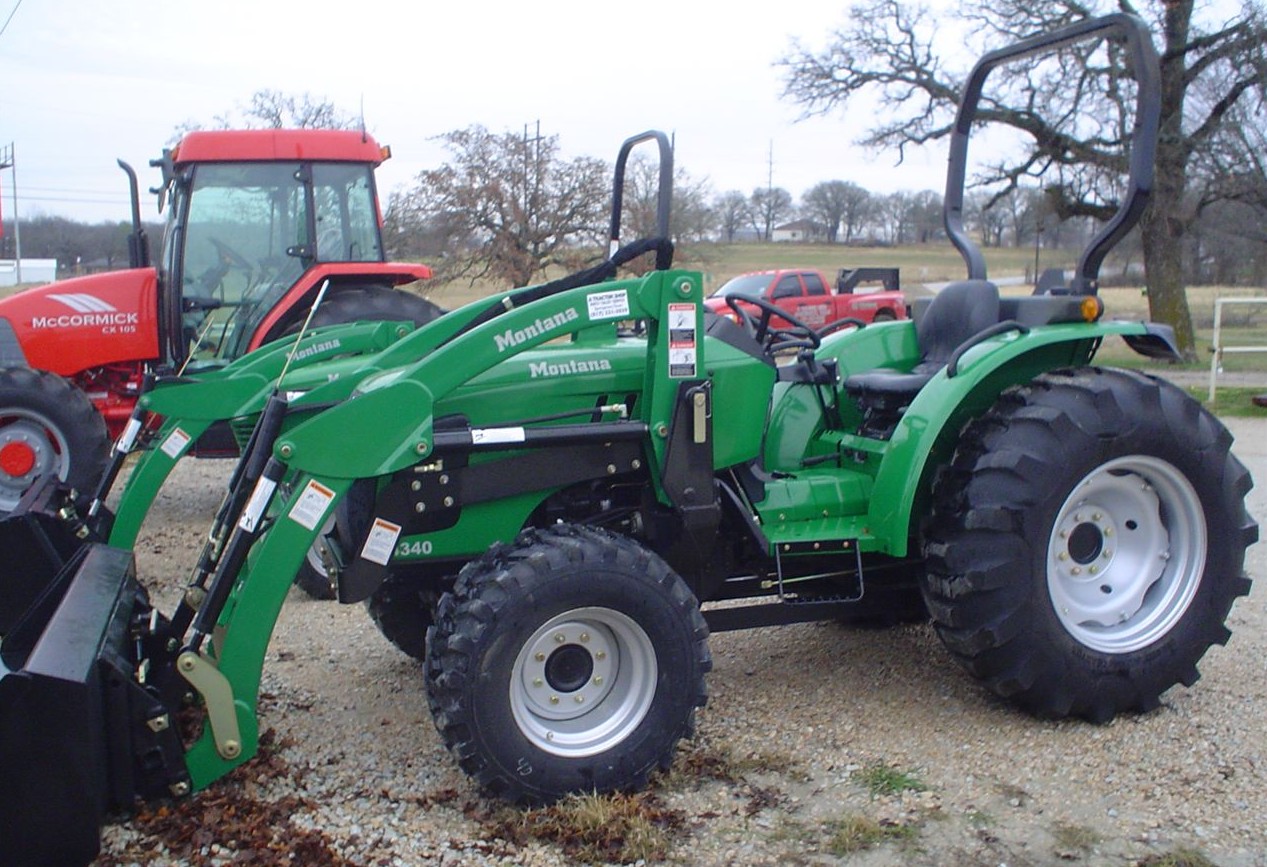

Montana 3440
Montana 3440 — Compact Utility tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1222 kg
Hover a source tag to verify
Overview
ManufacturerMontanaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
LT330HSTsimilar LS modelReference
Engine
Daedong 1.6L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)24.2 kWReference
Daedong 3A165LGReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)24.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow31.0 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1222 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase173 cmReference
Weight1222 kgReference
Front tire8-16Reference
Rear tire12.4-24Reference
Ag front8-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length335 cmReference
Height (ROPS)222 cmReference
Ground clearance33 cmReference
Montana 3440 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
