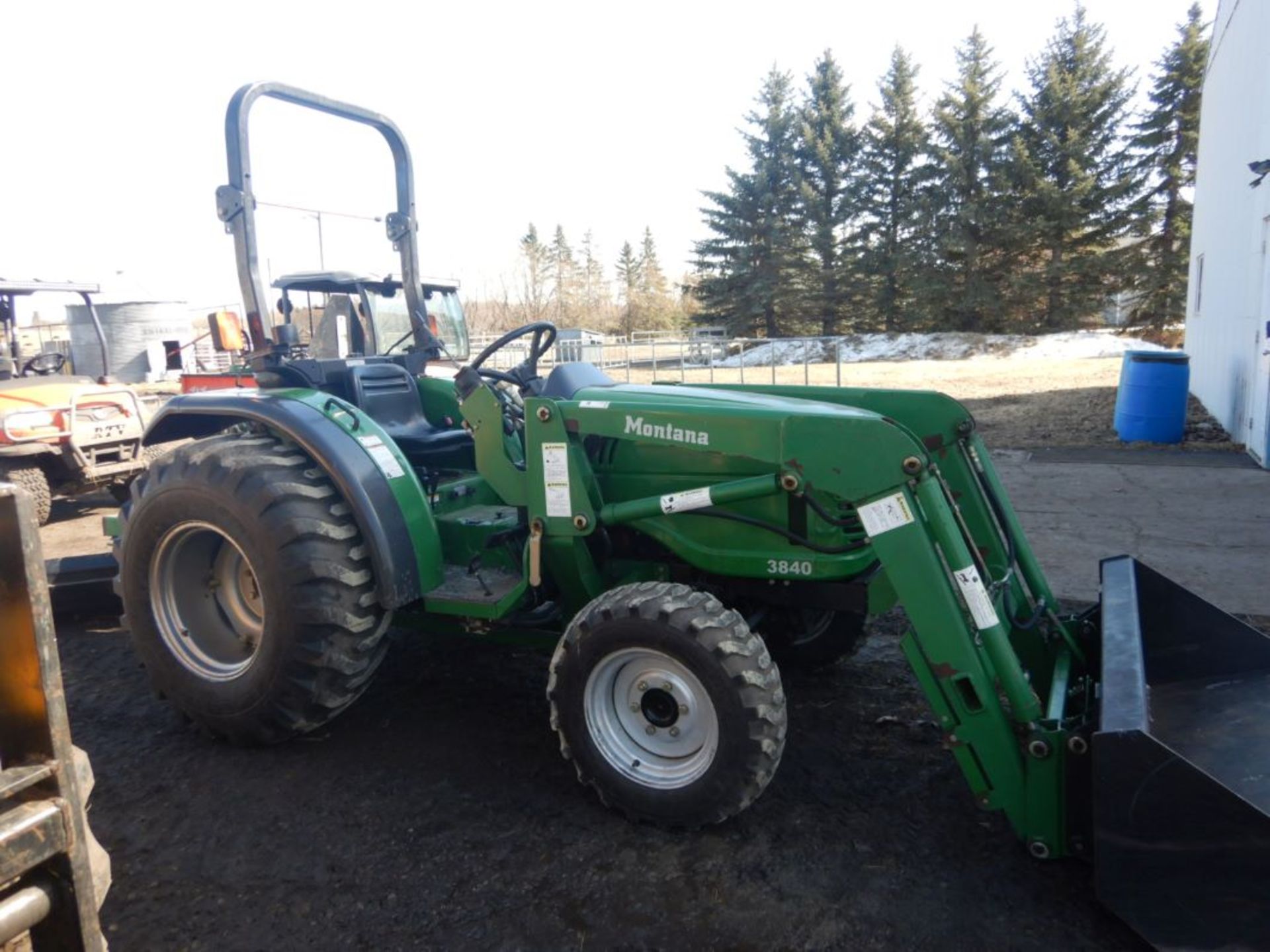

The Montana 3840 is a compact tractor rated at 38 hp, one of the smaller options in its class. Manufactured between 2004 and 2009, the 3840 features a 4-cylinder diesel liquid-cooled engine and a 12-speed gearbox, driving through four-wheel drive. Its listed weight is 1550 kg, suitable for tasks requiring up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1550 kg
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
38 hp
Recorded weight
1550 kg
Transmissions
12-speed sync shuttle
Production years
2004-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMontanaReference
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine28.3 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power28.3 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow30.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1350 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase160 cmReference
Weight1550 kgReference
Front tire8-16Reference
Rear tire12.4-24Reference
Ag front8-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length330 cmReference
Height (ROPS)222 cmReference
Ground clearance33 cmReference
Montana 3840 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
