Tractor · 2004Unverified

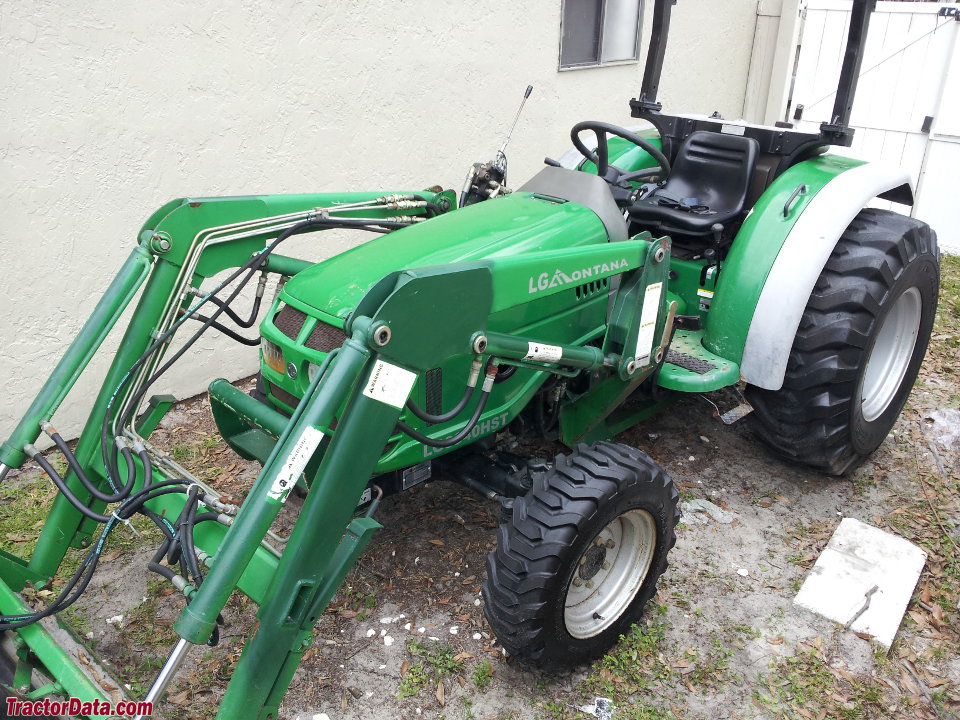

Montana 3940
Montana 3940 — Compact Utility tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1340 kg
Hover a source tag to verify
Overview
ManufacturerMontanaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)29.1 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power (gross)29.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow31.0 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1222 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase168 cmReference
Weight1340 kgReference
Front tire8-16Reference
Rear tire12.4-24Reference
Ag front8-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length335 cmReference
Height222 cmReference
Ground clearance33 cmReference
Montana 3940 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
