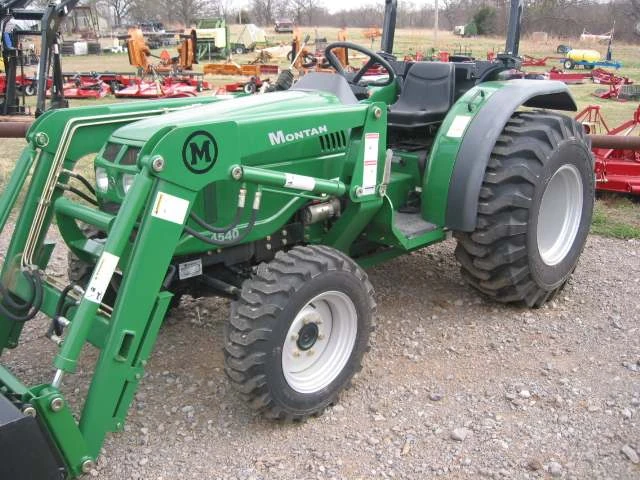

The Montana 4540 is a compact tractor with a rated output of 45 hp, suitable for a range of applications. Manufactured from 2004 to 2009, it features a 4-cylinder diesel liquid-cooled engine and four-wheel drive transmission, paired with a 12-speed gearbox. The listed weight of the Montana 4540 is 1730 kg, and it is designed to handle tasks on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1730 kg
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
45 hp
Recorded weight
1730 kg
Transmissions
12-speed sync shuttle
Production years
2004-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMontanaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 2.3L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine33.6 kWReference
Mitsubishi S4QSReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 95 mmReference
Power33.6 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow31.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1480 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase174 cmReference
Weight1730 kgReference
Front tire8-16Reference
Rear tire12.4-24Reference
Ag front8-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length333 cmReference
Height222 cmReference
Ground clearance33 cmReference
Montana 4540 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
