Tractor · 2005Unverified

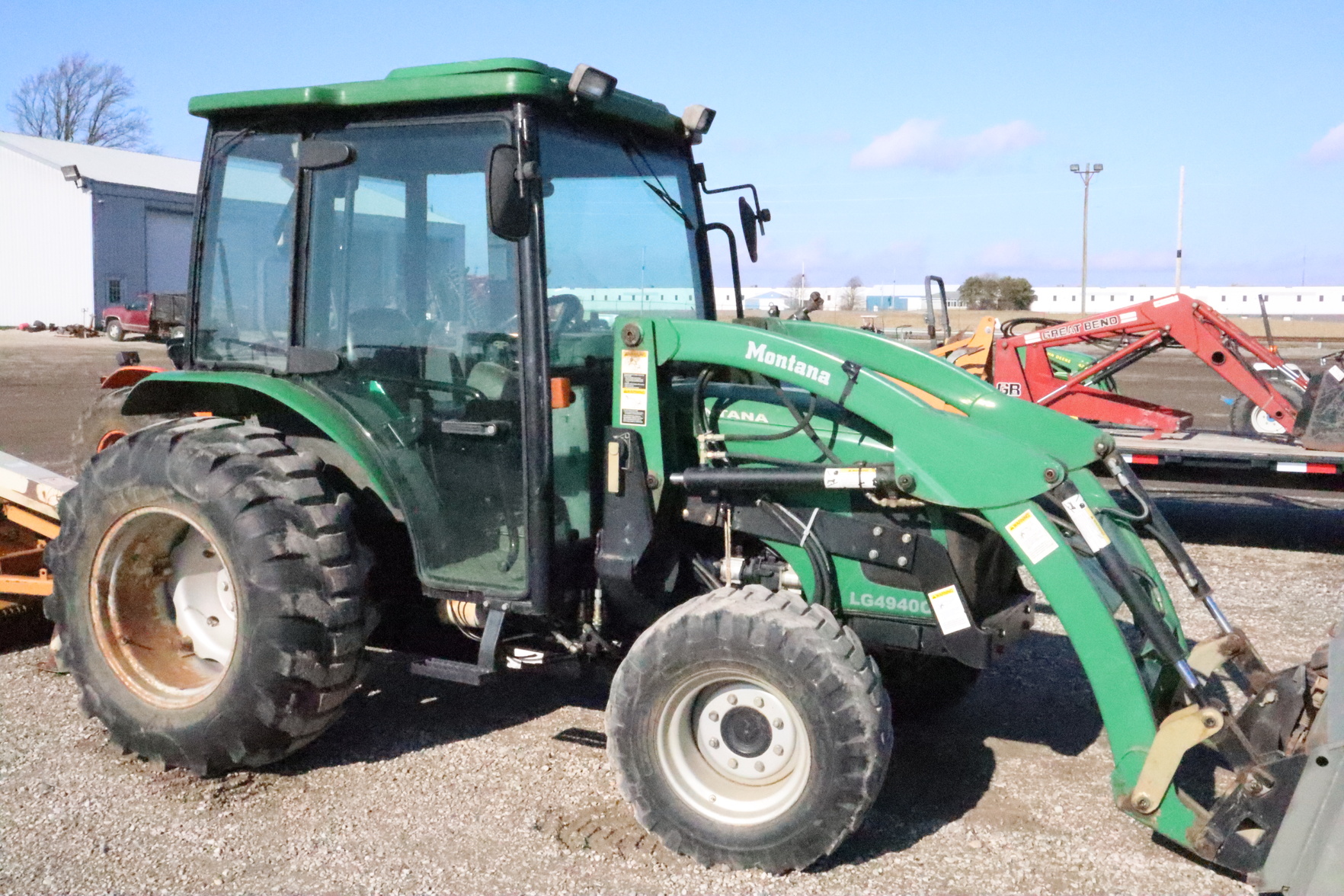

Montana 4940

Name: Montana 4940
Brand: Montana

Montana 4940 — Compact Utility tractor · 49 hp. Reference specifications; pending source verification.

The Montana 4940 is a compact tractor model rated at 49 hp, making it a suitable option for smaller agricultural tasks. Manufactured from 2005 to 2009, it features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a 16-speed gearbox. The listed weight of the tractor is between 4321 and 5202.8 pounds, and it is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

49 hp

Weight

4321 to 5202.8 pounds

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

49 hp

Recorded weight

2359 kg

Transmissions

16-speed sync shuttle

Production years

2005-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMontanaReference

ManufacturerLGReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Big Sky cab optional.Reference

Variants

49202WD ROPSReference

4920C2WD CabReference

49404WD ROPSReference

4940C4WD CabReference

Engine

Mitsubishi 2.5L 4-cyl dieselReference

Cab Fuel tank51.1 LReference

ROPS Fuel tank60.2 LReference

Engine36.5 kWReference

Mitsubishi S4QLReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke88 x 103 mmReference

Power36.5 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2,600Reference

Starter volts12Reference

Transmission

16-speed sync shuttleReference

Typesync shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

Valves2Reference

Pump flow31.9 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1450 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase189 cmReference

Weight4321 to 5202.8 poundsReference

Front tire9.5-20Reference

Rear tire13.6-28Reference

Ag front9.5-20Reference

Ag rear13.6-28Reference

Lawn/turf front9.5-16Reference

Lawn/turf rear14.9-24Reference

Industrial front12-16.5Reference

Industrial rear17.5-24Reference

Length319 cmReference

Height240 cmReference

Cab Weight2359 kgReference

ROPS Weight1960 kgReference

Ground clearance36 cmReference

Montana 4940 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
