Tractor · 2005Unverified

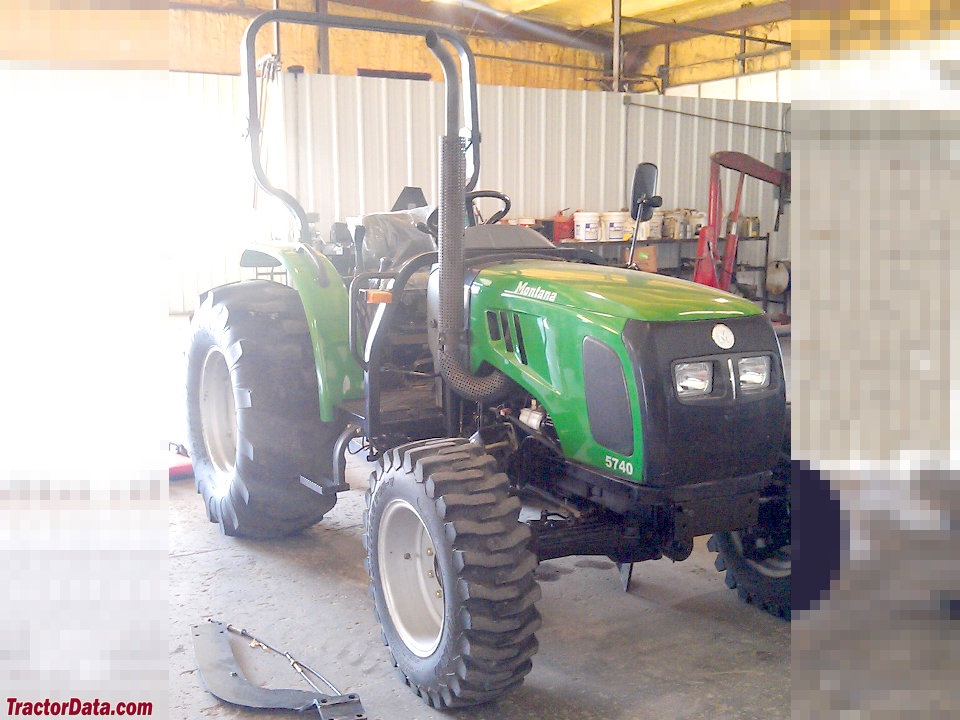

Montana 5740

Name: Montana 5740
Brand: Montana

Montana 5740 — Compact Utility tractor · 57 hp. Reference specifications; pending source verification.

The Montana 5740 is a tractor with a rated power output of 57 hp, categorising it as a lighter model within its class. It was manufactured from 2005 to 2009. Powered by a 4-cylinder diesel liquid-cooled engine and equipped with four-wheel drive and a 16-speed gearbox, it has a listed operating weight of 4650 to 5555.6 pounds. Suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Weight

4650 to 5555.6 pounds

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

57 hp

Recorded weight

2520 kg

Transmissions

16-speed sync shuttle

Production years

2005-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMontanaReference

ManufacturerLGReference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

ROPs or Big Sky cabReference

Variants

5720ROPS 2WDReference

5720CCab 2WDReference

5740ROPS 4WDReference

5740CCab 4WDReference

Engine

Mitsubishi 3.3L 4-cyl dieselReference

Cab Fuel tank51.1 LReference

ROPS Fuel tank60.2 LReference

Engine42.5 kWReference

Mitsubishi S4S-DReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke94 x 120 mmReference

Power42.5 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Pre-heatingglow plugsReference

Rated RPM2,500Reference

Starter volts12Reference

Transmission

16-speed sync shuttleReference

Typesync shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

Valves2Reference

Pump flow33.0 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1599 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase207 cmReference

Weight4650 to 5555.6 poundsReference

Front tire11.2-20Reference

Rear tire14.9-28Reference

Ag front11.2-20Reference

Ag rear14.9-28Reference

Lawn/turf front6.5-20Reference

Lawn/turf rear16.9-24Reference

Industrial front10.5x80-18Reference

Industrial rear19.5-24Reference

Length361 cmReference

Height245 cmReference

Cab Weight2520 kgReference

ROPS Weight2109 kgReference

Ground clearance39 cmReference

Montana 5740 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
