Tractor · 2006Unverified

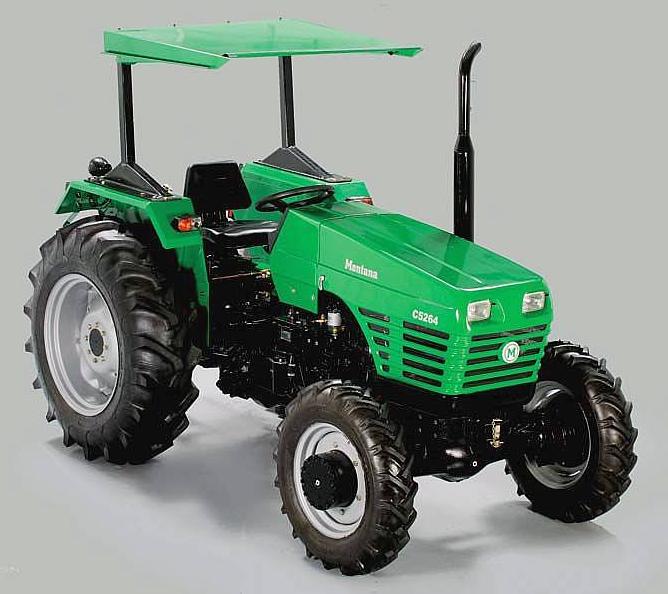

Montana C5264
Montana C5264 — C Series · 52 hp. Reference specifications; pending source verification.
The Montana C5264 is a tractor with a rated power output of 52 hp, positioning it at the lighter end of its class. Produced between 2006 and 2009, this tractor features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. It is suitable for operations covering up to 200 acres. Details of the specifications are provided.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
52 hp
Transmissions
8-speed
Production years
2006-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMontanaReference
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
Four-wheel driveReference
Power steeringReference
Mechanical drum brakesReference
Two-post fixed ROPS.Reference
Variants
C52622WDReference
C52644WDReference
523similar UTB/Universal modelReference
Engine
UTB 2.8L 3-cyl dieselReference
Fuel tank65.0 LReference
Engine38.8 kWReference
UTB 2302.053Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke102 x 115 mmReference
Power38.8 kWReference
Air cleanerdry elementReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Valves1 or 2Reference
Pump flow33.0 lpmReference
Rear TypeII/IReference
Rear lift1199 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Front tire7.5-16Reference
2WD Rear tire14.9R28Reference
2WD Standard tires (ag)Front: 7.5-16. Rear: 14.9R28Reference
4WD Standard tires (ag)Front: 7.5R20. Rear: 14.9R28Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
