Tractor · 2006Unverified

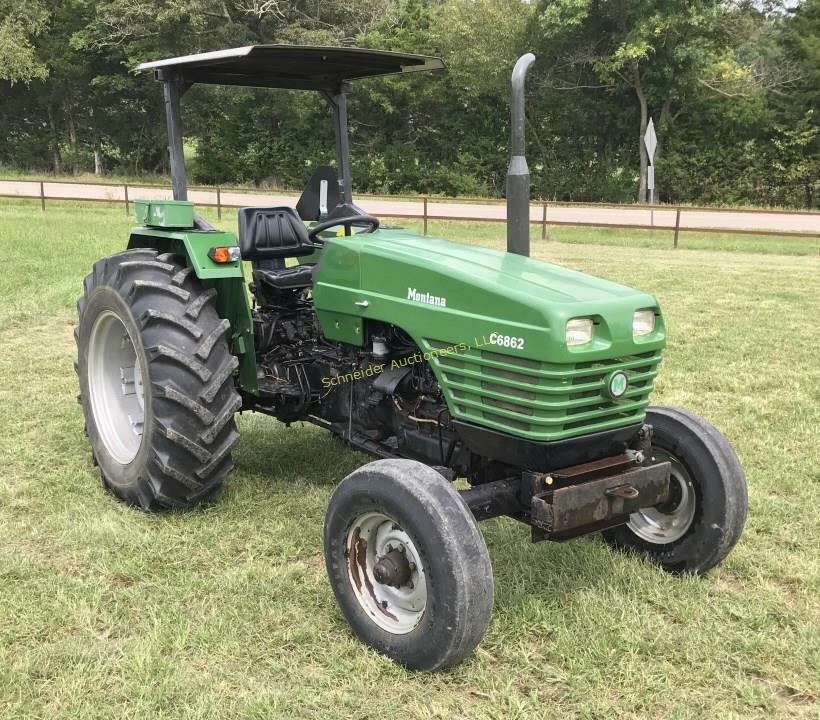

Montana C6862
Montana C6862 — C Series · 68 hp. Reference specifications; pending source verification.
The Montana C6862 is a tractor with a rated power output of 68 hp, falling within the mid-range of its class. Manufactured from 2006 to 2009, it is equipped with a 4-cylinder diesel liquid-cooled engine and four-wheel drive, along with an 8-speed gearbox. This tractor is suitable for operations covering up to 200 acres. Specifications for both UK and US models are available.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
68 hp
Transmissions
8-speed gear
Production years
2006-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMontanaReference
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
C68622WDReference
C68644WDReference
683similar UTB/Universal modelReference
Engine
UTB 3.8L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine50.7 kWReference
UTB 2404.055Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke102 x 115 mmReference
Power50.7 kWReference
Air cleanerdry elementReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
8-speed gearReference
8-speed shuttleReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Valves1 or 2Reference
Pump flow33.0 lpmReference
Rear TypeII/IReference
Rear lift1199 kgReference
Rear lift2099 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Front tire7.5-16Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 7.5-16. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
C6862 Serial Numbers
Location:Serial number plate on the right side of the transmission housing, ahead of the brake pedals.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
