Tractor · 2007Unverified

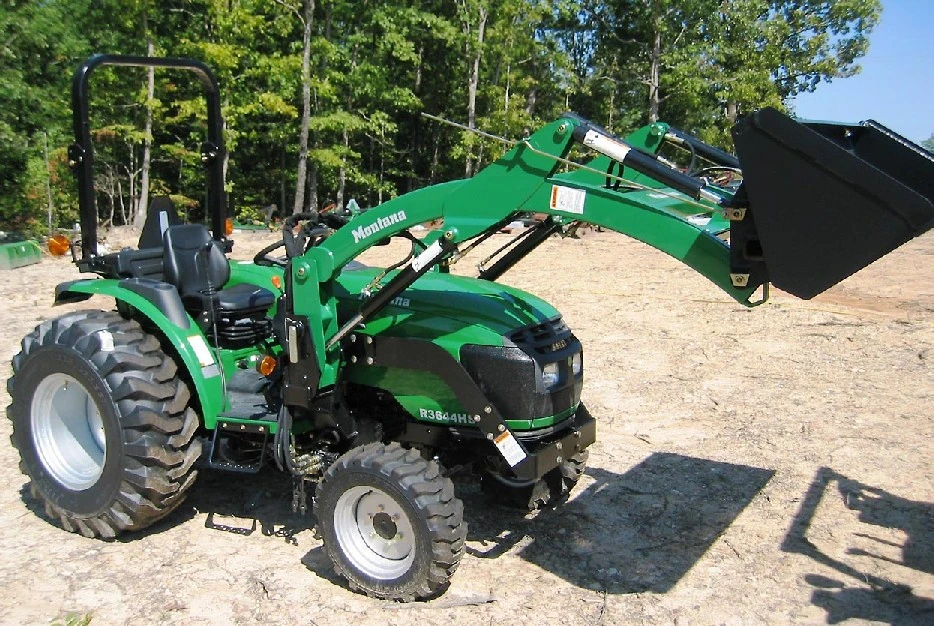

Montana R3644
Montana R3644 — R Series · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1230 kg
Hover a source tag to verify
Overview
DistributorMontanaReference
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
CT36similar McCormick Intl modelReference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank32.2 LReference
Engine (gross)28.7 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power (gross)28.7 kWReference
Fuel systemindirect injectionReference
Air cleanerdry dual elementReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
12-speedReference
hydrostaticReference
Transmissionsliding gear, synch shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)23.1 kWReference
Hydro PTO (claimed)21.6 kWReference
Typeopen centerReference
Pressure166.7 barReference
Valves2Reference
Pump flow30.7 lpmReference
Steering flow13.6 lpmReference
Steering press.117.6 barReference
Rear TypeIReference
Rear lift (at ends)1187 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Dimensions
Weight1230 kgReference
Front tire7-16,4PR (7-14)Reference
Rear tire12.4-24,8PR (11.2-24)Reference
Weight396 kgReference
Ag front7-16,4PR (7-14)Reference
Ag rear12.4-24,8PR (11.2-24)Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length297 cmReference
Height231 cmReference
Ground clearance33 cmReference
Montana R3644 attachments
front-end loaderReference
backhoeReference
R3644 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Montana MBH76 Backhoe
Backhoe typeMontana MBH76 BackhoeReference
Transport height175 cmReference
Digging depth243 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force909 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
