Tractor · 2006Unverified

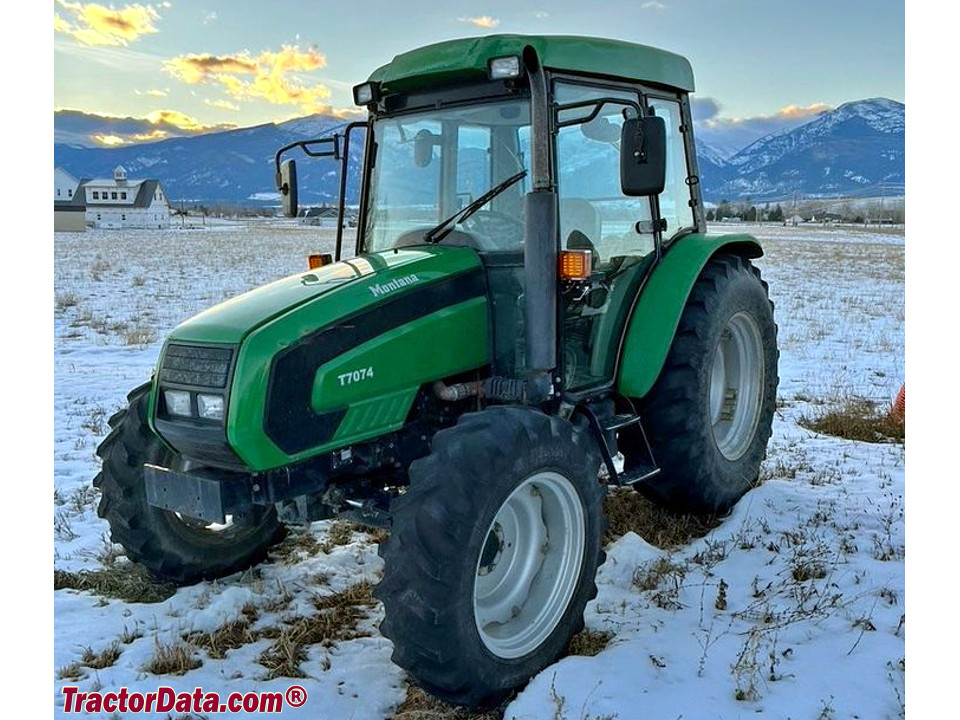

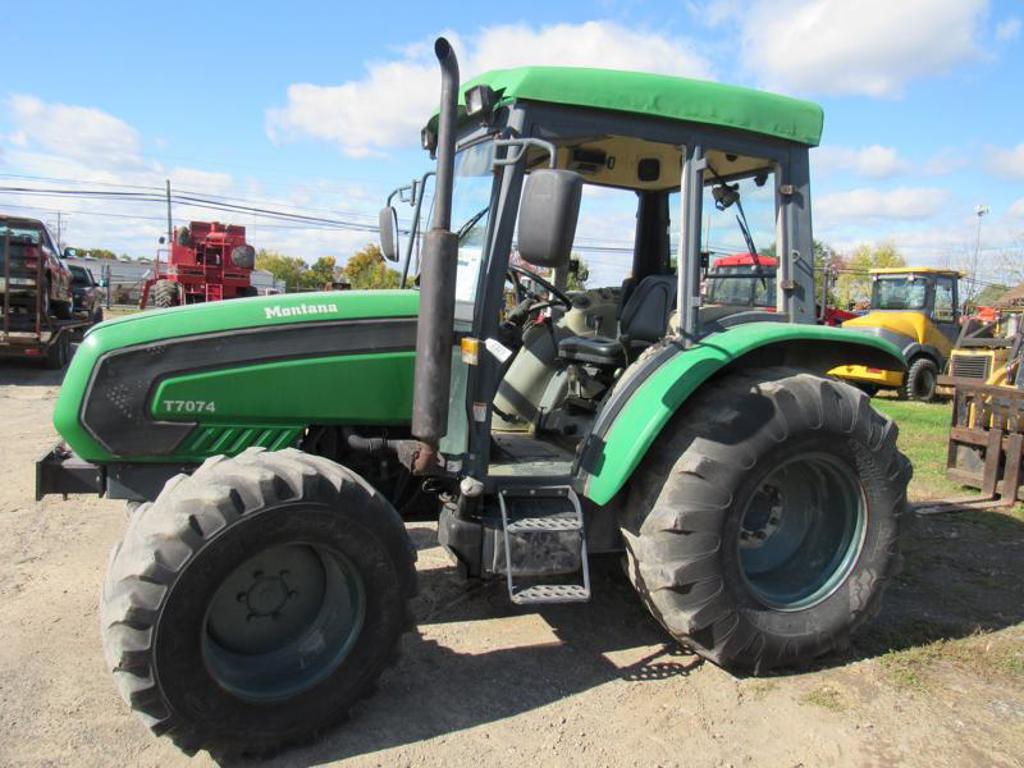

Montana T7074

Name: Montana T7074
Brand: Montana

Montana T7074 — Utility tractor · 70 hp. Reference specifications; pending source verification.

The Montana T7074 is a tractor model with a rated output of 70 hp, positioning it centrally within its class in terms of power. Produced between 2006 and 2009, this model is equipped with a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive through a 16-speed gearbox. The listed weight of the T7074 is 3020 kg, and it is suited for tasks covering areas of approximately 200 ac. Specifications for the model are provided in both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

70 hp

Weight

3020 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

70 hp

Recorded weight

3020 kg

Transmissions

16-speed sync shuttle

Production years

2006-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMontanaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard.Reference

Engine

John Deere 2.9L 3-cyl dieselReference

Engine (gross)52.2 kWReference

Engine (net)50.7 kWReference

John Deere 3029TReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Power (net)50.7 kWReference

Power (gross)52.2 kWReference

Air cleanerdual dryReference

Rated RPM2500Reference

Starter volts12Reference

Oil capacity8.5 LReference

Coolant capacity9.2 LReference

Transmission

16-speed sync shuttleReference

Typesync shuttleReference

Gears16 forward and reverseReference

Clutchdry discReference

PTO & Hydraulics

PTO (claimed)44.7 kWReference

Hydraulic system45.0 LReference

Typeopen centerReference

Capacity45.0 LReference

Rear valves3Reference

Front valves2Reference

Pump flow39.9 lpmReference

Total flow59.3 lpmReference

Steering flow19.4 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)2199 kgReference

Rear lift (at 24"/610mm)1315 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2396Reference

Engine RPM1000@2347Reference

Capacities

Fuel99.9 LReference

Dimensions

Wheelbase211 cmReference

Weight3020 kgReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Ag front11.2-24Reference

Ag rear16.9-30Reference

Length404 cmReference

Width195 cmReference

Height259 cmReference

Ground clearance44 cmReference

Montana T7074 attachments

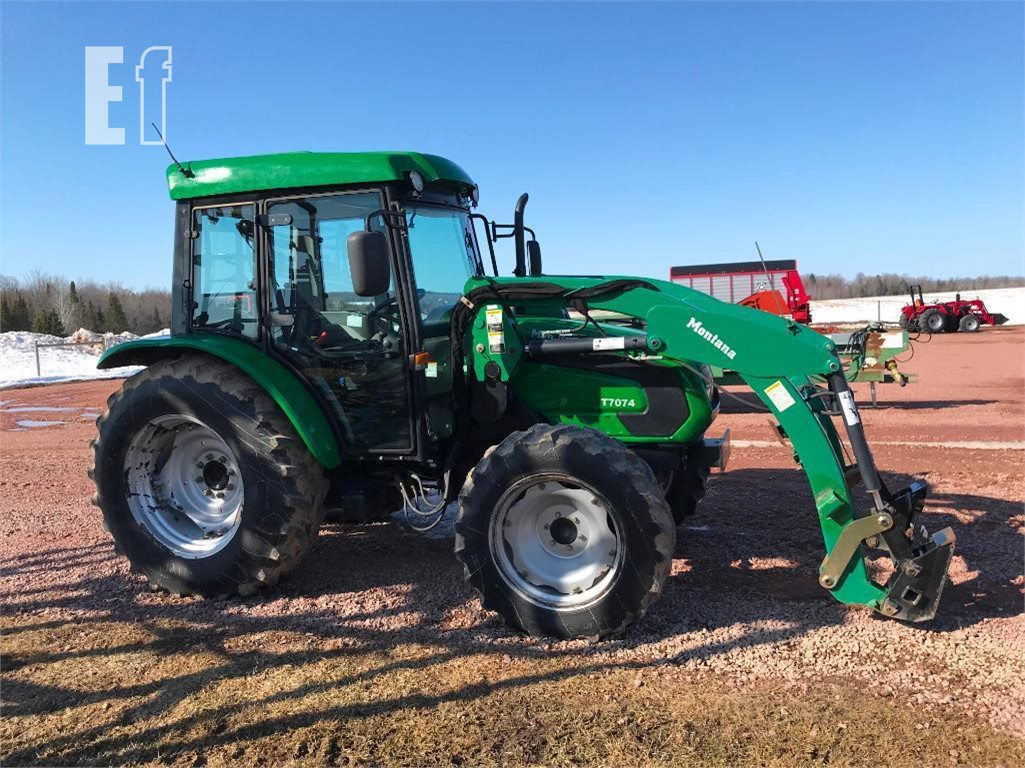

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
