Tractor · 2008Unverified
Montana U4384

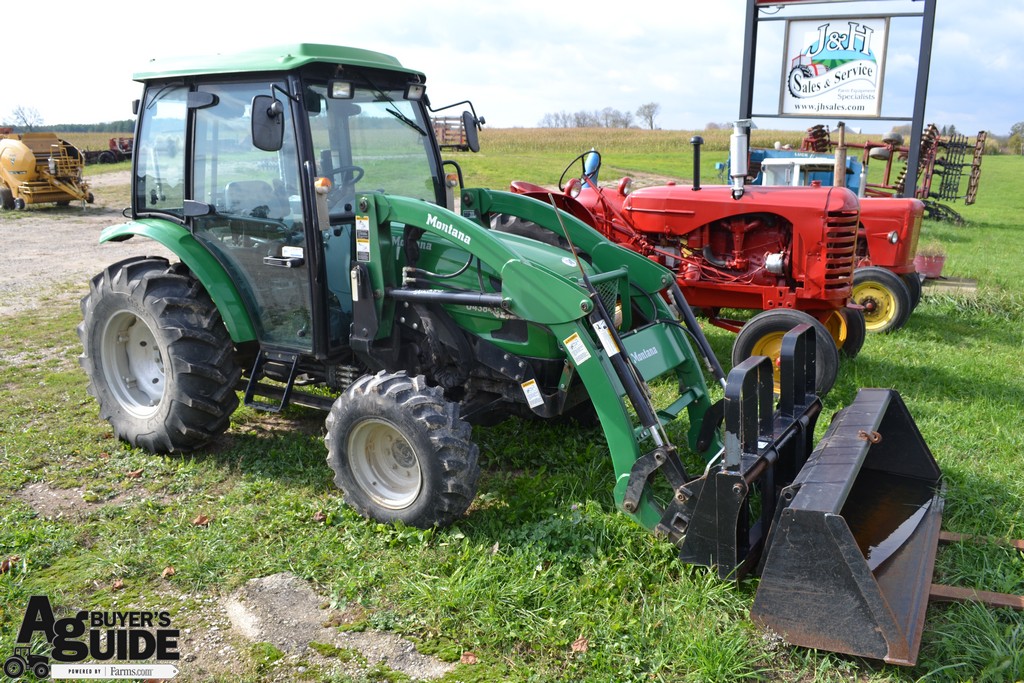

Montana U4384 — Utility tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1935 kg
Hover a source tag to verify
Overview
ManufacturerMontanaReference
Utility tractorReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
ROPS platformReference
Variants
U4384ROPSReference
U4384Ctractor with cabReference
Engine
Mitsubishi 2.3L 4-cyl dieselReference
Fuel tank60.0 LReference
Engine30.6 kWReference
Mitsubishi S4QSReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Power30.6 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Valves4Reference
Total flow36.4 lpmReference
Rear lift1500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase193 cmReference
Weight1935 kgReference
Front tire9.5-16Reference
Rear tire14.9-24Reference
Ag front9.5-16Reference
Ag rear14.9-24Reference
Length343 cmReference
Width156 cmReference
Height (ROPS)255 cmReference
Ballasted weight2014 kgReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
