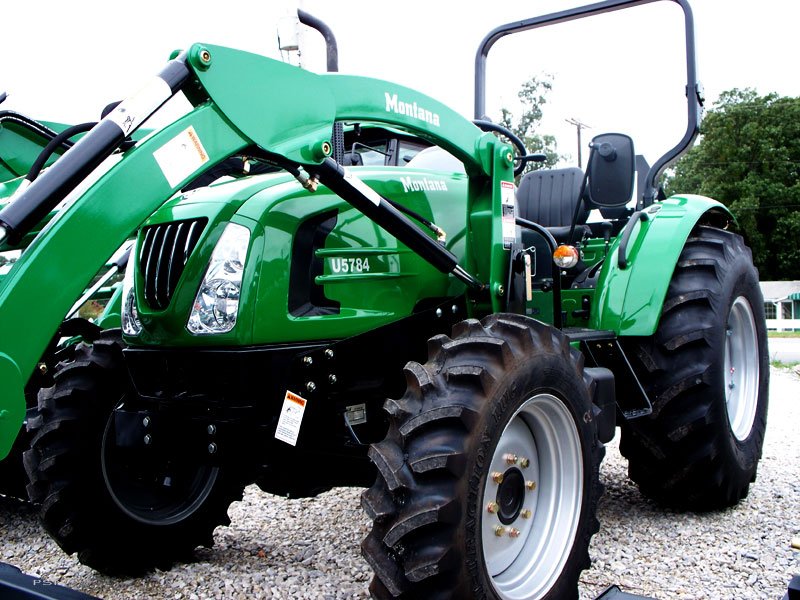

The Montana U5784 is a tractor rated at 52 hp — making it one of the more compact options in its class. The U5784 was manufactured from 2008 to 2009. Power comes from a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 16-speed gearbox. Listed weight is 2115 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
2115 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
52 hp
Recorded weight
2115 kg
Transmissions
16-speed synchro shuttle
Production years
2008-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMontanaReference
Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
ROPS PlatformReference
Variants
U5745ROPSReference
U5784Ctractor with cabReference
Engine
Mitsubishi 3.3L 4-cyl dieselReference
Fuel tank60.0 LReference
Engine42.5 kWReference
Mitsubishi S4S-DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Power42.5 kWReference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
Valves4Reference
Total flow37.5 lpmReference
Rear lift1799 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase204 cmReference
Weight2115 kgReference
Front tire9.5-20Reference
Rear tire16.9-24Reference
Ag front9.5-20Reference
Ag rear16.9-24Reference
Length343 cmReference
Width169 cmReference
Height (ROPS)259 cmReference
Ballasted weight2194 kgReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
