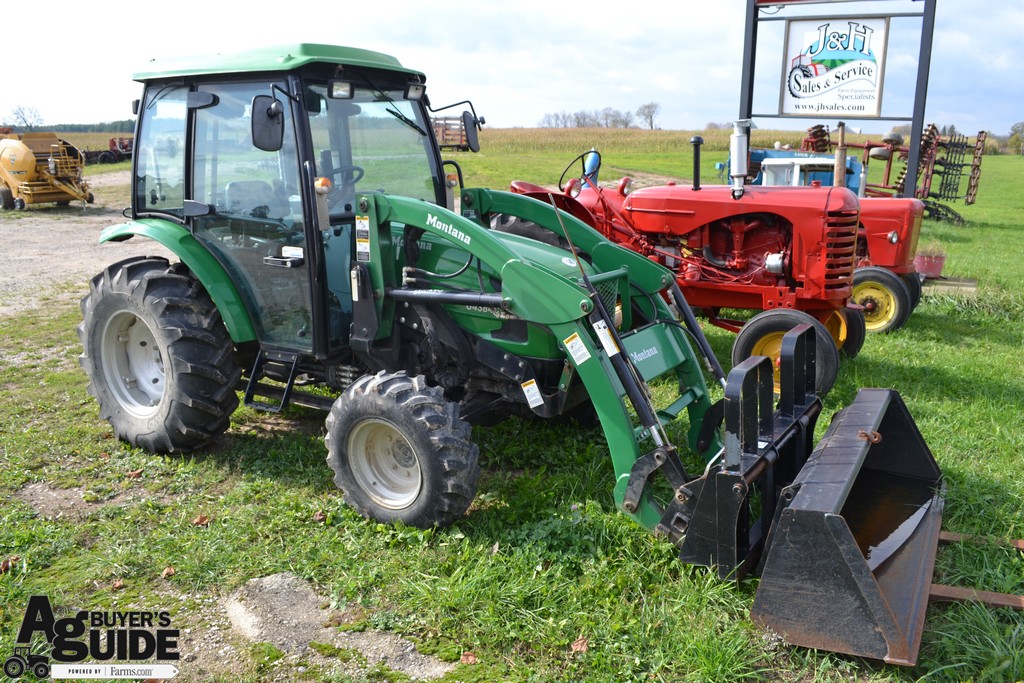

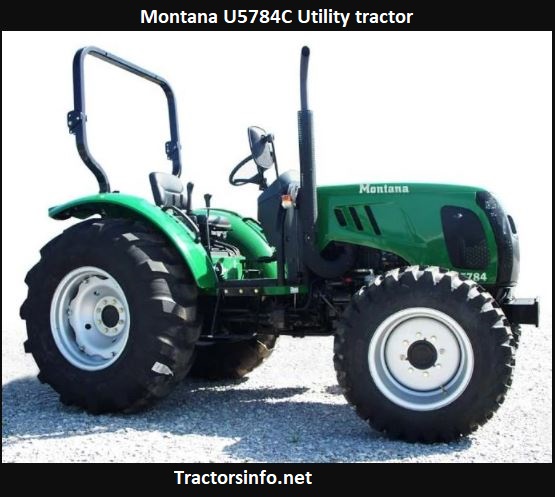

The Montana U5784C is a compact tractor with a rated output of 52 hp, suitable for a range of tasks. It was manufactured between 2008 and 2009. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, which drives four-wheel drive through a 16-speed gearbox. Its listed weight is 2370 kg, making it suitable for working areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
2370 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
52 hp
Recorded weight
2370 kg
Transmissions
16-speed synchro shuttle
Production years
2008-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMontanaReference
Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Cab with heat and A/C.Reference
Variants
U5745ROPSReference
U5784Ctractor with cabReference
Engine
Mitsubishi 3.3L 4-cyl dieselReference
Fuel tank60.0 LReference
Engine42.5 kWReference
Mitsubishi S4S-DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Power42.5 kWReference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
Valves4Reference
Total flow37.5 lpmReference
Rear lift1799 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase204 cmReference
Weight2370 kgReference
Front tire9.5-20Reference
Rear tire16.9-24Reference
Ag front9.5-20Reference
Ag rear16.9-24Reference
Length343 cmReference
Width169 cmReference
Height (cab)242 cmReference
Ballasted weight2449 kgReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
