Tractor · 1968Unverified

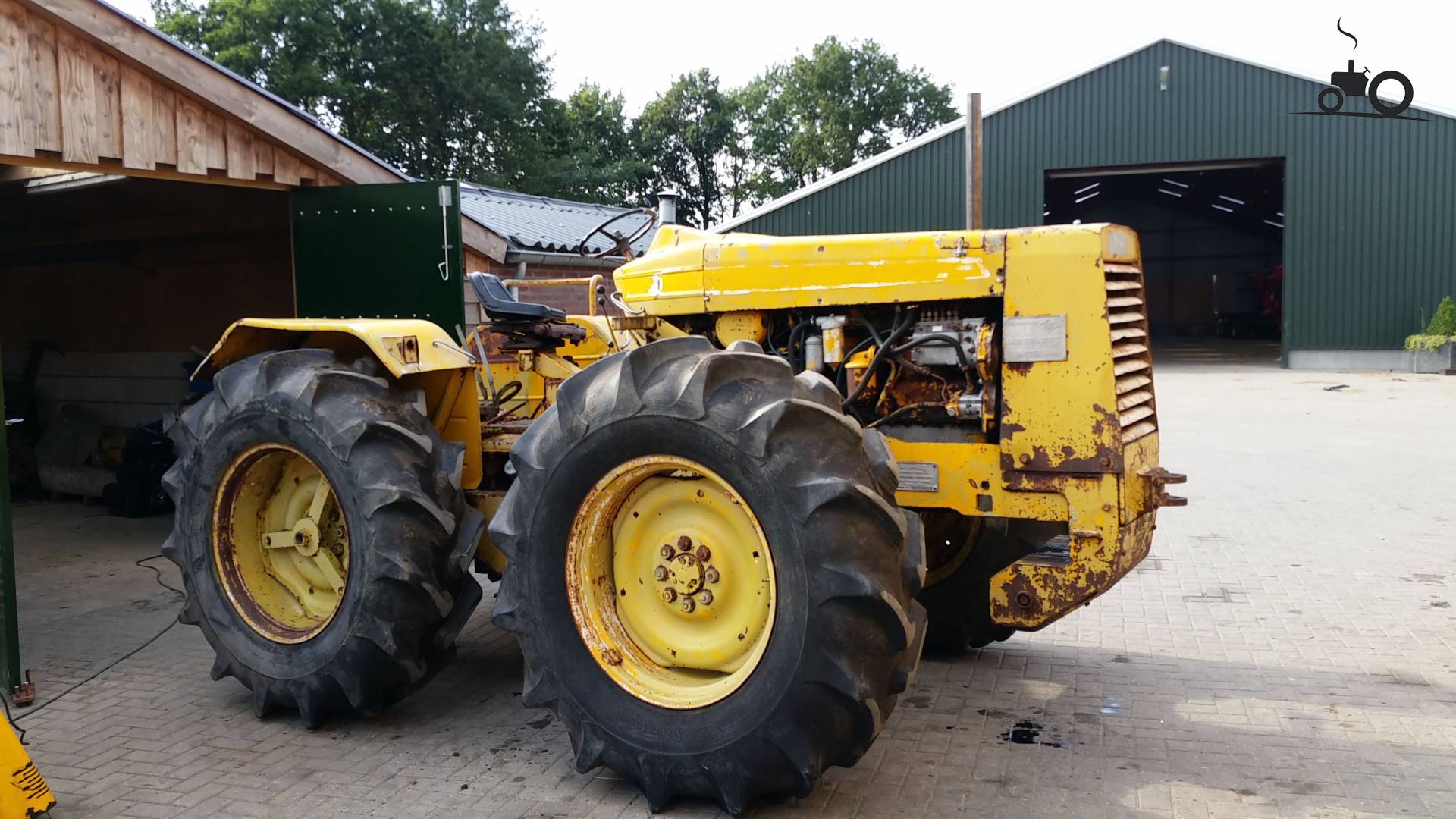

Muir-Hill 101
Muir-Hill 101 — Four-wheel Drive (4WD) tractor · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
4371 kg
Hover a source tag to verify
Overview
ManufacturerMuir-HillReference
Four-wheel Drive (4WD) tractorReference
Built in Manchester, EnglandReference
Drive4x4 4WDReference
Final drivesplanetaryReference
Differential lockhydraulic front and rearReference
SteeringpowerReference
Hydraulic wet disc brakesReference
Open operator station. Cab optional.Reference
Engine
Ford 5.9L 6-cyl dieselReference
Fuel tank162.8 LReference
Engine (gross)89.5 kWReference
Engine (net)75.3 kWReference
Ford 2704EReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke105 x 115 mmReference
Power (net)75.3 kWReference
Power (gross)89.5 kWReference
Air cleanerdryReference
Compression16.5:1Reference
Rated RPM2500Reference
Torque343.7 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch360mm dry discReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Typeopen centerReference
Valves2Reference
Pump flow27.3 lpmReference
Steering flow15.1 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@1750Reference
Engine RPM1000@2320Reference
Dimensions
Wheelbase190 cmReference
Weight4371 kgReference
Front tire13.6/12-38Reference
Rear tire13.6/12-38Reference
Ag front13.6/12-38Reference
Ag rear13.6/12-38Reference
Ag front23.1/18-26Reference
Ag front16.9/14-30Reference
Ag front18.4/15-30Reference
Ag front16.9/14-34Reference
Ag rear23.1/18-26Reference
Ag rear16.9/14-30Reference
Ag rear18.4/15-30Reference
Ag rear16.9/14-34Reference
Length393 cmReference
Width219 cmReference
Height (hood)203 cmReference
Front tread162 to 203 cmReference
Rear tread162 to 203 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
