Tractor · 1978Unverified

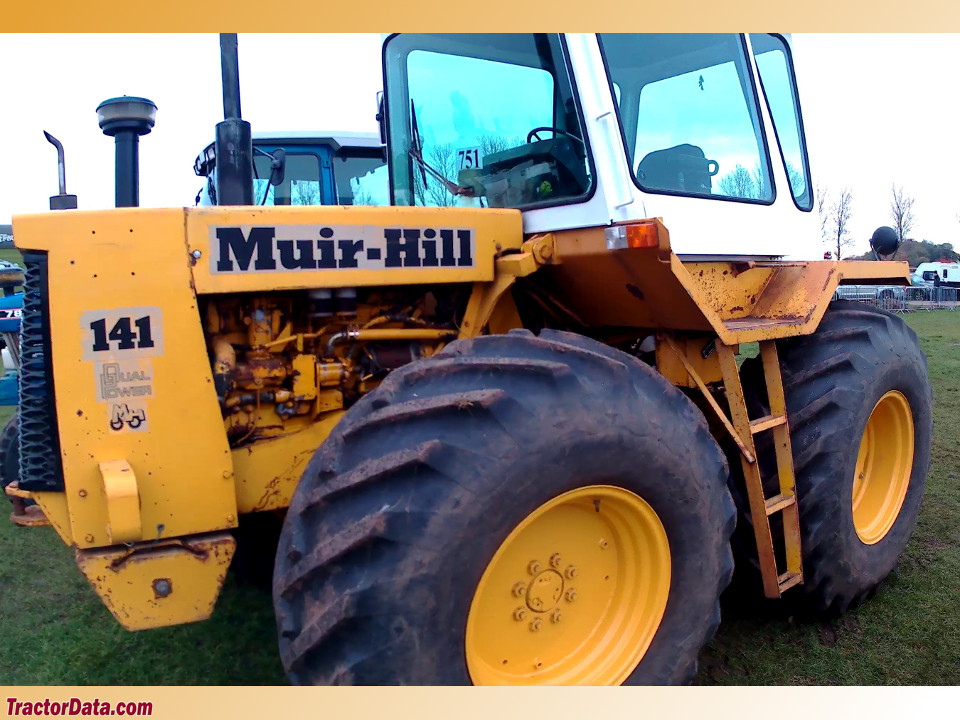

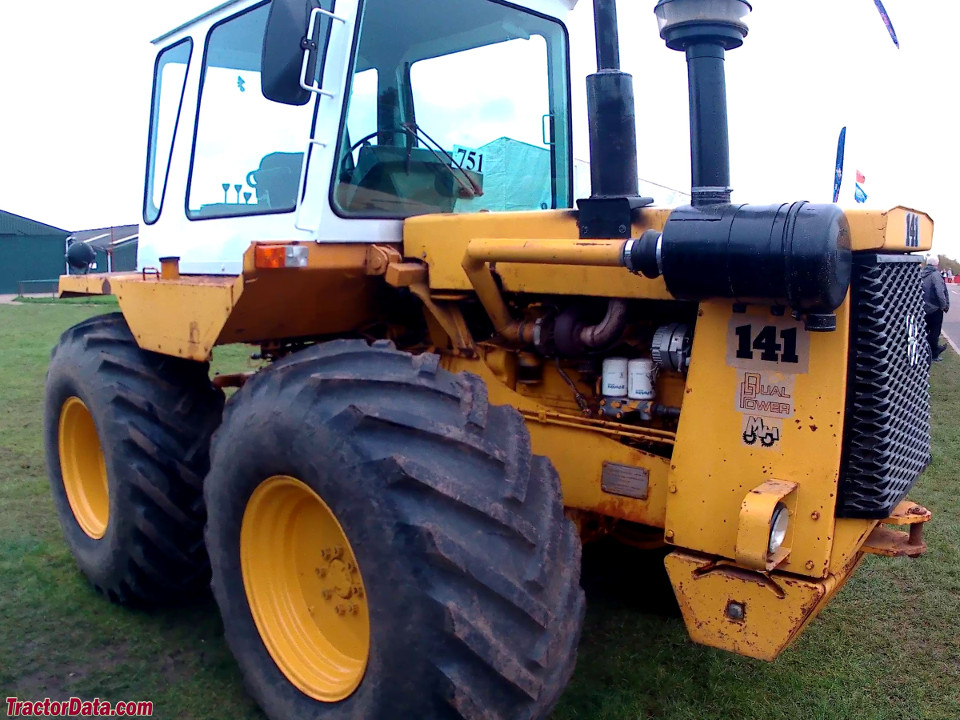

Muir-Hill 141
Muir-Hill 141 — Four-wheel Drive (4WD) tractor · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
5896 kg
Hover a source tag to verify
Overview
ManufacturerMuir-HillReference
Four-wheel Drive (4WD) tractorReference
Built in Manchester, EnglandReference
Drive4x4 4WDReference
SteeringpowerReference
Cab standard.Reference
Engine
Ford 5.9L 6-cyl dieselReference
Perkins 5.8L 6-cyl dieselReference
Fuel tank246.0 LReference
Engine108.1 kWReference
Ford 2704ETReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke105 x 115 mmReference
Power108.1 kWReference
StarterelectricReference
Starter volts12Reference
Perkins T6.354Reference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTO Type540/1000Reference
Dimensions
Weight5896 kgReference
Front tire13.6/12x38Reference
Rear tire13.6/12x38Reference
Ag front13.6/12x38Reference
Ag rear13.6/12x38Reference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
